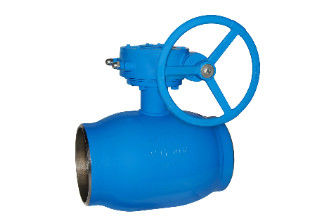

Blue Color Trunnion Ball Valve / Fully Welded Floating Type Ball Valve

China Blue Color Trunnion Ball Valve / Fully Welded Floating Type Ball Valve supplier

Large Image :  Blue Color Trunnion Ball Valve / Fully Welded Floating Type Ball Valve

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE
Model Number: DN 15~350,PN1.6~40

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 10-80days
Supply Ability: 3000-8000PCS per month
Contact Now
Detailed Product Description
Size: DN 15~350 Pressure: PN1.6~40
Material: Carbon Steel, Stainless Steel Design:: API6D, ASME B16.34
Test: API 598 Operation: Lever, Gear,Pneumatic Etc

Full Welded Forged Steel Ball Valve





Structural characteristics:

  • The valve body is made of steel plate and welded together to avoid any possible leakage of the medium.
  • The spring-loaded seat structure has strong adaptability to pressure and temperature changes, ensuring tight contact between the seal and the ball.
  • Under the premise of ensuring the sealing, the valve is flexible to open and close,
  • The operation is light, and the ball and the valve stem are processed by a precision machine tool, which reduces the friction coefficient between the contact surfaces, and further improves the sealing performance and the operating torque of the valve.







Technical Specification:

  1. Tempertature & pressure :ASME B16.34
  2. Wall thickness:ASME B16.34
  3. Bore dimension:API 6D
  4. Flanges dimensions:ASME B16.5,ASME B16.25
  5. Test & Inspection: API 6D,API 598
  6. Body material:A105,LF2,F304,F316 etc

Reduce Bore Main Size :

DN

L

(RF)

L

(WE)

D1 D2

H1

(Lever)

H1

(WORM WHEEL)

W

(LEVER)

W

(WORM WHEEL)

15X10 130 210

21

42

64

  129
20X15 150 230 27 48 64   129
25X20 160 230 34 60 76   159
32X25 180 260 42 76 85   159
40X32 200 300 48 89 95   245
50X40 230 300 60 89 124   245
65X50 270 300 76 114 162   320
80X65 280 300 89 140 175   320
100X80 300 325 114 168 192 169 450 230
125X100 350 325 141 203 205 183 450 230
150X125 400 350 168 219 225 203 450 230
200X150 450 400 219 273 245 224 1000 280
250X200 568 560 273 351 285 262 1000 320
300X250 648 635 325 426 348 322 1500 320
350X300 762 762 377 508   355   400



Standard:

  1. Design and manufacture conform to :API 6D
  2. Connection ends to :ASME B16.5
  3. Material according to ANSI/ASTM.
  4.  Trim materials: A105+ENP,13Cr,F304,F316



Advantage:

  1. We offer the custom made valves, as per customer requirements
  2. OEM with your own logo and brand
  3. Exported to all over of the world
  4. Quality Guarantee, available with API,CE,SGS and ISO certifications

Select us :

  • Design team: With professional design staff,  Sample order is always welcomed
  • Professional factory: Specializing in manufacturing valves for many years, competitive price with good quality, the deadline usually is 30-45 days
  • Sample: We can offer sample in 3 days, but the shipment charge  is usually beared by customerside, the fee will be deducted from agreed offical order.
  • Quick response to your needs: We will  answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.
