Stainless Steel 304 316 Fully Welded Ball Valve , One Piece Ball Valve

China Stainless Steel 304 316 Fully Welded Ball Valve , One Piece Ball Valve supplier

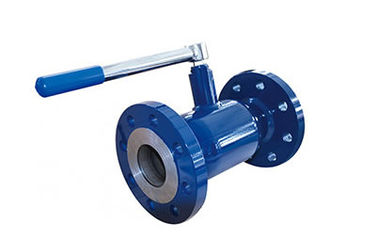

Large Image :  Stainless Steel 304 316 Fully Welded Ball Valve , One Piece Ball Valve

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 1/4"-24",CL150-2500

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 30-80days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000-5000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 1/4"~24" Pressure Rating:: Class 150~2500
Material:: A105, LF2, F304, F316,F304L, F316L,F51,A106-B, 20# Etc Design & Manufacturing Standard:: API 6D, API 6DSS, KS,BS 5351, ASME B16.34
Face To Face:: ASME B16.10, API 6D End Connection:: ASME B16.5, ASME B16.47, ASME B16.25
Test And Inspection:: ISO 5208, API 6D, API598 Operation Method:: Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator

Fully welded ball valve of RF flange with locking device DN15-DN600



Flanged Floating Ball Valve,Pipeline Branches Control,Pipeline Construction,Pipeline Ball Valves



Fully welded ftanged floating ball valves from series DN15 to DN600 utilize flange connecting method to make them compatible with other flange-connected products. The valve replacement process is rather convenient These Kinds of valves are suitable for pipeline branches, underground pipeline, gas delivery equipment, liquid storage device, tunnel construction, etc.



Valve opening:flat steel handle (standard confìguration)/worm wheel (optional confìguration); motor driven/pneumatically driven/hydro driven (optionalconfìguration)

Medium:water,oil,gas



Mainly include: all-welded ball valve, welded ball valve at flange end, fully welded ball valve with buried extension rod. Materials are WCB (A105), 304, 304L, 316, 316L, etc.;



Product introduction



All welded ball valve material:



1): Valve body: carbon steel ST37.0, A106-B; No. 20 steel



2): Sphere: Stainless steel 304 or 316



3): Stem: 2Cr13



4): stem seal: perfluoro-like glue



5): Sphere seal: PTFE (PTFE + C)



Standard features of all welded ball valves:



1): Path: DN15~600



2): Pressure: PN 16~64



3): Working temperature: -29 ° C ~ +200 ° C



4): All welded ball valve adapts to medium: water, oil, natural gas



5): All-welded ball valve operation mode: water, oil, natural gas



Fully welded ball valve features:



1): Since the all-welded ball valve body is welded, the valve is light and easy to insulate.



2): The spring-loaded PTFE sphere seal ensures absolute tightness under all application conditions



3): All welded ball valve ball and stem are made of stainless steel with two o-ring anti-flying valve stem structure to ensure the tightness, the upper container can be replaced, the working life is long



4): All welded ball valves are available in welded, wired and flanged versions



5): Obtained ISO 9001 certification



6): Steel ball valves are suitable for use in local heating and cooling systems, pressure gas lines and oil lines.



Stainless Steel 304 316 Fully Welded Ball Valve , One Piece Ball ValveStainless Steel 304 316 Fully Welded Ball Valve , One Piece Ball Valve
