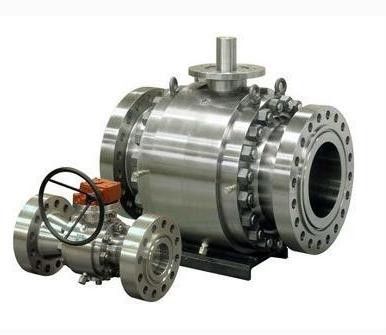

4 Inch Trunnion Ball Valve Emergency Sealant Injection Blowout Proof Stem

China 4 Inch Trunnion Ball Valve Emergency Sealant Injection Blowout Proof Stem supplier

Large Image :  4 Inch Trunnion Ball Valve Emergency Sealant Injection Blowout Proof Stem

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 2"-56",CL150-2500,API 2000-15000

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 30-70days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000-5000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 2"~56" Pressure Rating:: Class 150~2500,API 2000-15000
Material:: A105, LF2, F304, F316,F304L, F316L, F51 Etc Design & Manufacturing Standard:: API 6A, API 6D, API 6DSS, BS 5351, ASME B16.34
Face To Face:: ASME B16.10, API 6D End Connection:: ASME B16.5, ASME B16.47, ASME B16.25
Test And Inspection:: ISO 5208, API 6D, API598 Operation Method:: Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator

Forging trunnion ball valve of 2"-56" CL150-2500 emergency sealant injection



  1. Industry Specific Solutions

Production, transportation, storage and processing of oil and gas require the highest quality piping components. This is our world. In conjunction with our sister companies we supply customers with valves, hammer unions, couplings, connectors, actuators and other valve accessories
for high pressure process and piping at oil and gas facilities, both above ground and offshore.



     2. World Class & Worldwide Service



We are dedicated to providing our customers with the best — the best brands, the best service and the best quality. Whether you require an automated valve for a highly engineered project or a replacement valve delivered same day, we are here to help. Our industry
experience, product selection and access to a global network of partners enable us to tailor a solution to solve your most difficult problem.



     3. Expanding Our Product Portfolio



While others are collapsing their portfolios and cutting costs, we have an aggressive strategy to supply complimentary products to served markets
and increase service levels to establish ourselves as your single source provider for valve and flow control solutions.



  • BLOWOUT PROOF STEM

Positive stem retention is achieved with integral T-type shoulder retained by the gland retainer



  • ANTI-STATIC DESIGN

Positive anti-static grounding between the ball, stem and trunnion is a standard feature on the Trident Series. Valves sizes 16” and above are equipped with an additional anti-static spring on the trunnion shaft for added safety and reliability.



  • BODY SEALING

The double sealing design of the O-Rings and fire safe graphite gaskets ensure zero leakage at the body and closure connections



  • EMERGENCY SEALANT INJECTION

Valves are equipped with sealant injection fittings at the stem and seat area. The seat injection fittings have an integral buried check valve to provide backup sealing. Should leakage occur at either the seat or gland packing area, leakage can temporarily be stopped by injecting sealant into the secondary sealing system.



  • FIRE SAFE CERTIFIED

Fire safe construction is standard on all trunnion mounted ball valves. In the event of a fire, secondary graphite seals and gaskets prevent leakage to atmosphere and seat ring to ball contact minimizes through leakage.



  • SEAT DESIGN

In very low line pressure applications, sealing between the seats and ball is achieved by seat springs forcing the seat into the ball, resulting in
a seal. In high line pressure applications, the line pressure, in conjunction with the spring load, forces the upstream seat ring against the ball resulting in tighter sealing. The Trident Series’ standard seat design is a selfrelieving seat, which prevents cavity pressure buildup by automatically relieving the cavity when the pressure becomes too high. In the case of leakage past the upstream seat, the optional double
piston effect seat (DPE) has an added benefit of enabling the downstream seat to maintain a tight shutoff seal against the ball.



 Component Material Specification take A105+ENP for example
1 Closure Carbon Steel ASTM A105N
2 Body Carbon Steel ASTM A105N
3 Ball1 Carbon Steel ASTM A105N + 3 mil ENP
4 Gasket 316 + Graphite 316 + Graphite
5 O-Ring Rubber HNBR 90
6 Trunnion/Internal Trunnion Support Low Alloy Steel AISI 4140 + 3 mil ENP
7 Thrust Washer RPTFE RPTFE
8 Bearing 316 + PTFE 316 + PTFE
9 Injection Fitting Stainless Steel ASTM A276 316
10 Check Valve Stainless Steel ASTM A276 316L
11 Anti-Static Plunger Stainless Steel ASTM A276 316
12 Anti-Static Spring Stainless Steel ASTM A276 316
13 Stud Carbon Steel ASTM A193 B7M
14 Nut Carbon Steel ASTM A194 2HM
15 Stem Fire Safe Seal Graphite Graphite
16 Spring Inconel® X-750 UNS N07750
17 Vent Valve Stainless Steel ASTM A276 316
18 Actuator Mounting Pad Carbon Steel ASTM A105N
19 Pin Stainless Steel ASTM A276 304
20 Key Carbon Steel AISI 1045
21 Seat Ring Carbon Steel ASTM A105N + 3 mil ENP
22 Stem Low Alloy Steel AISI 4140 + 3 mil ENP
23 Screw Carbon Steel ASTM A193 B7M
24 Seat Insert Plastic Devlon®
25 Gland Flange Carbon Steel ASTM A105N
26 Seat Fire Safe Seal Flexible Graphite Flexible Graphite
27 Hex Head Block & Bleed Fitting Stainless Steel ASTM A276 304
28 Upper Gland Dowel Pin Carbon Steel AISI 1045
29 Trunnion Bearing Pin Stainless Steel ASTM A276 410
30 Gear Stud Carbon Steel AISI 1035
31 Gear Nut Carbon Steel AISI 1035
32 Handle Guide Carbon Steel ASTM A216 WCB



Trunnion Mounted Ball Valve’s split body construction complies with API 6D, ASME B16.34, API 608, API 607 and other relevant ASTM specifications. With a variety of material selections available as well as ISO 5211 complaint direct mount actuator pad, the Cast Trunnion Ball Valve can be customized and automated to suit a complete range of oil and gas  applications.


• Sizes 2” to 16”, ASME Class 150 through 1500
• API 6D Monogrammed, ISO 14313, CSA Z245.15-17
• NACE MR0175/ISO 15156-1
• Material Traceability to ASME B31.1
• Compliant with ASME B16.5, B16.10 and ISO 52115
• PED 2014/68/EU Annex III, Module H
• Fire Safe: API 607 7th Edition



Recommended Bolt Torque
Bolt Size Torque Values (Inch-lbs.) Bolt Size Torque Values (Inch-lbs.)
Inch Metric B7 B7M Inch Metric B7 B7M
1/4 M6 62 53 1-1/4 M30 10798 9824
5/16 M8 142 124 1-3/8 M36 15002 14028
3/8 M10 248 221 1-1/2 M39 19799 18587
7/16 - 416 381 1-5/8 M42 25800 24286
1/2 M12 602 549 1-3/4 M45 32394 27756
9/16 M14 903 841 1-7/8 M48 39607 34695
5/8 M16 1204 1106 2 M52 49210 41634
3/4 M20 2168 2036 2-1/4 M56 71957 61761
7/8 M22 3629 3469 2-1/2 M64 99571 86914
1 M24 5532 5222 2-3/4 M68 134531 113113
1-1/8 M27 7877 7125 3 M76 175245 147808
