API 6D Reduce Bore Gear operation Ball Valve Full Welded PN16 - PN25 Pressure

China API 6D Reduce Bore Gear operation Ball Valve Full Welded PN16 - PN25 Pressure supplier

Large Image :  API 6D Reduce Bore Gear operation Ball Valve Full Welded PN16 - PN25 Pressure

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE
Model Number: DN125~DN600,PN16~PN25

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 10-80days
Supply Ability: 3000-8000PCS per month
Contact Now
Detailed Product Description
Size: DN125~DN600 Pressure: PN16~PN25
Material: Carbon Steel, Stainless Steel Design:: API6D, ASME B16.34
Test: API 598 Operation: Lever, Gear,Pneumatic Etc

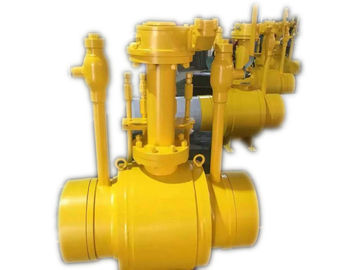

Full Welded Reduce Bore  Forged Steel Ball Valve



Description:
Fully welded ball valve can be used for long-term reliable operation, no maintenance, simple installation, making valve installation easier.



DN PN L D D1 D2 H B C H1 WEIGHT
125 25 325 100 139.7 177.8 309 145 50 101 19
150 25 350 125 168.3 219.1 330 145 50 107 24
200 25 390 150 219.1 273 398 196 75 123 48
250 25 520 200 273 355 451 236 100 122 90
300 25 635 250 323.9 455 572 280 193 155 193
350 25 686 300 355.6 508 697 325 150 187 385
400 25 762 350 406.4 610 764 466 175 221 567
500 16 914 400 508 680 810 466 175 211 746
600 16 1067 500 610 830 966 325 150 259 1507





Standard:

  1. Design and manufacture conform to :API 6D
  2. Connection ends to :ASME B16.5
  3. Material according to ANSI/ASTM.
  4.  Trim materials: A105+ENP,13Cr,F304,F316

Application:

  1. Petrochemical
  2. Chemical
  3. Refinery
  4. Power plant etc

Advantage:

  1. We offer the custom made valves, as per customer requirements
  2. OEM with your own logo and brand
  3. Exported to all over of the world
  4. Quality Guarantee, available with API,CE,SGS and ISO certifications

Select us :

  • Design team: With professional design staff,  Sample order is always welcomed
  • Professional factory: Specializing in manufacturing valves for many years, competitive price with good quality, the deadline usually is 30-45 days
  • Sample: We can offer sample in 3 days, but the shipment charge  is usually beared by customerside, the fee will be deducted from agreed offical order.
  • Quick response to your needs: We will  answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.
