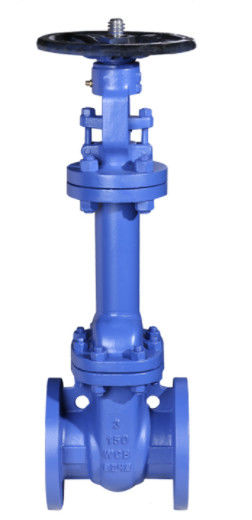

DIN Standard Bellow Seal Gate Valve Double Seal Ergonomic Hand Wheel

China DIN Standard Bellow Seal Gate Valve Double Seal Ergonomic Hand Wheel supplier

Large Image :  DIN Standard Bellow Seal Gate Valve Double Seal Ergonomic Hand Wheel

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 1/2"-20", DN15-DN500

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 30-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000-5000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 12"~20" Pressure Rating:: Class 150~300
Material:: WCB, LCB, WC6, WC9, C12,CF8, CF8M, CF3,CF3M,etc Temperature:: -196°~593°
Design & Manufacturing Standard:: DIN,BS 1414, ASME B16.34 Face To Face:: ASME B16.10, API 6D, BSEN 558
End Connection:: BSEN 1092, ASME B16.5, ASNE B16.47, Operation Method:: Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator

DIN Standard Bellows Seal Gate Valve, Double seal design(bellows+packing)



For use in applications where leakage into or out of the valve is unacceptable such as heat transfer oil, toxic fluids, steam and regulated media. Our bellows technology keeps corrosive or harmful atmospheric conditions from entering the process.



Industrial Bellow Gate Valve

Size:DN15-DN400

Pressure Range:0.6∽6.4Mpa

Working Temp.:≤80°

Material:Carbon steel,Stainless steel,Alloy steel

Medium:Steam,thermal oil,rank poison and strong corrupt gas and liquid medium.

Operation: Manual Pneumatic Electric



Applicable Standard

Design standard: DIN 3352

Face to face dimension: DIN 3202

Flanged ends: DIN 2543-2545

Test & inspection: DIN 3230



Advantages:

  1. Bellow seal element. The key part of bellow sealed globe valves is mental bellow. It is the connection between cover and stem with automatic roll welding. The mental bellow can keep the stem part no leakage.
  2. Double seal design(bellows+packing). Bellow and packing can protect against leakage and provide a excellent seal.
  3. Grease nipple. It can direct lubricate the stem, nut and sleeve.
  4. Ergonomic hand wheel. It provide longer service life and easier operation.

Main part materials

No. Part name Material
1 Body GS-C25,1.4301,1.4401
2 Disc GS-C25+1.4201/1.4301
3 Seat 1.4301,Stellite
4 Stem 1.4021,1.4301,1.4401
5 Bellows 1.4301,1.4401
6 Double-headed bolt ASTM 193-B7,A193-B8
7 Nut ASTM 194-2H,A194-8
8 Metal gasket Asbestos+ Stainless steel
9 Nut ASTM 194-2H,A194-8
10 Middle yoke GS-C25,1.4301,1.4401
11 Double-headed bolt ASTM 193-B7,A193-B8
12 Nut ASTM 194-2H,A194-8
13 Gasket Flexible graphite+ stainless steel
14 Cover GS-C25,1.4301,1.4401
15 Nut ASTM 194-2H,A194-8
16 Packing Flexible graphite
17 Gland GS-C25,1.4301
18 Nut ASTM 194-2H,A194-8
19 Jack bolt ASTM 193-B7,A193-B8
20 Stem nut Copper alloy,D2,BL2
21 Oil cup Assemble
22 Cap 1C45,1.4301,1.4401
23 Hand wheel Carbon steel



Main connection size:

Material DN Main connection size
150 LB
L D D1 D2 b f   n-Φd
A105 1/2″ 108 90 60.5 35 10 2   4-Φ16
3/4″ 117 100 70 43 11 2   4-Φ16
1″ 127 110 79.5 51 12 2   4-Φ16
1-1/4″ 140 115 89 63.5 13 2   4-Φ16
1-1/2″ 165 125 98.5 73 15 2   4-Φ16
A105 WCB 2″ 178 150 120.5 92 16 2   4-Φ19
WCB 2-1/2″ 190 180 139.5 105 18 2   4-Φ19
3″ 203 190 152.5 127 20 2   4-Φ19
4″ 229 230 190.5 157 24 2   8-Φ19
5″ 254 255 216 186 24 2   8-Φ22
6″ 267 280 241.5 216 26 2   8-Φ22
8″ 292 345 298.5 270 29 2   8-Φ22
10″ 330 405 362 324 31 2   12-Φ25
12″ 356 485 432 381 32 2   12-Φ25
14″ 381 535 476 413 35 2   12-Φ29
16″ 406 595 540 470 37 2   16-Φ29
18″ 432 635 578 533 40 2   12-Φ32
20″ 457 700 625 584 43 2   20-Φ32
300 LB
  1/2″ 140 95 66.5 35 15 2   4-Φ16
3/4″ 152 115 82.5 43 16 2   4-Φ19
1″ 165 125 89 51 18 2   4-Φ19
1-1/4″ 178 135 98.5 63.5 20 2   4-Φ19
1-1/2″ 190 155 114.5 73 21 2   4-Φ22
A105 WCB 2″ 216 165 127 92 23 2   8-Φ19
WCB 2-1/2″ 241 190 149 105 26 2   8-Φ22
3″ 282 210 168.5 127 29 2   8-Φ22
4″ 305 255 200 157 32 2   8-Φ22

6″ 403 320 270 216 37 2   12-Φ22
8″ 502 380 330 270 42 2   12-Φ22
10″ 568 445 387 324 48 2   16-Φ29
12″ 648 520 451 381 51 2   16-Φ32
14″ 762 585 514.5 413 54 2   20-Φ32
16″ 838 650 571.5 470 58 2   20-Φ35
18″ 914 710 628.5 533 61 2   24-Φ35
20″ 991 775 686 584 64 2   24-Φ35
