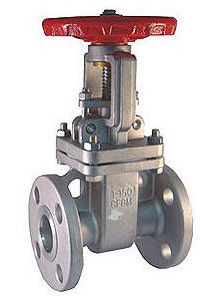

Investment Casting Flanged End Gate Valve Cast Steel Gate Valve High Performance

China Investment Casting Flanged End Gate Valve Cast Steel Gate Valve High Performance supplier

Large Image :  Investment Casting Flanged End Gate Valve Cast Steel Gate Valve High Performance

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: ISO, CE,API
Model Number: 1/2~36", CL150~1500

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 10-80days
Supply Ability: 3000-8000PCS per month
Contact Now
Detailed Product Description
Size: 1/2~36" Pressure: CL150~1500
Material: Stainless Steel Certifcate: CE, API,ISO
Operation: Lever


GATE VALVE  FLANGETYPE


Specifications:

  1. 1/2"~36" (DN15~DN900)
  2. W. P.: PN10/16/25/40
    CLASS 150/300/600/900/1500
    JIS 10K
  3. W. T.:-20℃ ~200℃ (-4℉~392℉)
  4. Investment casting
  5. Rising stem
  6. API 6D / API 600 / API 603 (option)




*5" UP GASKET:304+GRAPHITE

ITEM PARTS MATERIAL
1 BODY ASTM A351-CF8M 1.4408 ASTM A351-CF8 1.4308
2 DISC
3 BONNET BOLT AISI 304
4 BONNET NUT
5 BONNET ASTM A351-CF8M 1.4408 ASTM A351-CF8 1.4308
6 HINGE PIN AISI 304
7 EYE BOLT
8 GLAND ASTM A351-CF8
1.4308
9 NUT AISI 304
10 HAND WHEEL FCD
11 NUT BRONZE
12 STEM AISI 316 AISI 304
13 NAME PLATE AISI 304
14 SPRING BRONZE
15 YOKE SLEEVE
16 SPRING WASHER AISI 304
17 GLAND PACKING PTFE
18 PACKING
19 SEAL PTFE/304+GRAPHITE





Flanged End Gate Valve 2054 PN16 - Haitima Valve p2

Design team: With professional design staff,  Sample order is always welcomedSelect us :

  • Professional factory: Specializing in manufacturing valves for many years, competitive price with good quality, the deadline usually is 30-45 days
  • Sample: We can offer sample in 3 days, but the shipment charge  is usually beared by customerside, the fee will be deducted from agreed offical order.
  • Quick response to your needs: We will  answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.
