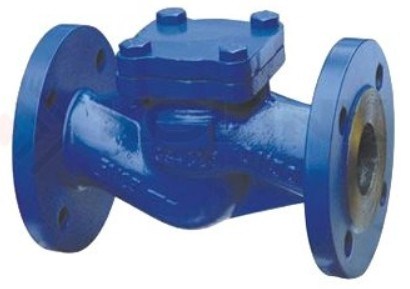

Din Cast Steel Check Valve Swing Disc Lift Disc Good Sealing Performance

Name: Din Cast Steel Check Valve Swing Disc Lift Disc Good Sealing Performance
Brand: Kelite Valve
SKU: DN15~DN600, PN10~PN160
Rating: 4.9 (127 reviews)

Large Image : Din Cast Steel Check Valve Swing Disc Lift Disc Good Sealing Performance

Product Details:

Place of Origin:	China
Brand Name:	Kelite Valve
Certification:	API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number:	DN15~DN600, PN10~PN160

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	Plywood packing or fumigation packing
Delivery Time:	30-60days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000-5000PCS per month

Contact Now

Detailed Product Description

Size：:	DN15~DN600	Pressure Rating：:	PN10~PN160
Material：:	WCB, LCB, WC6, WC9, C12,CF8, CF8M, CF3,CF3M,etc	Temperature：:	-196°~593°
Design & Manufacturing Standard：:	DIN, BS 1414, ASME B16.34	Face To Face：:	ASME B16.10, API 6D, BSEN 558
End Connection：:	ASME B16.5, ASNE B16.47, BSEN 1092,DIN	Operation Method：:	Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator
High Light:	ductile iron swing check valve , bolted bonnet check valve

Din Cast Steel Check Valve, DN15~DN600,Swing Disc Type Lift Disc Type Optional

Kelite Valve is specialized in manufacturing DIN Cast Steel check Valve with following good characteristics: good sealing performance, reliable safety guarantee, Long working life. completitive cost and 24 hours after sale services and etc.

Features

Size:DN15~DN600
Class:PN10~PN160
Body Material:Cast Carbon Steel,Cast Alloy Steel,Cast Stainless Steel,Duplex Steel,etc.
Bolted Cover
Swing Disc Type
Lift Disc Type Optional
Counterweight on request

Specification

Design:	DIN3352,DIN3356,EN13709,EN14341
Face to Face:	DIN3202,EN12982,EN558
End Flange:	DIN2543,DIN2544,DIN2545,DIN2546,DIN2547,DIN2548
BW Ends:	EN12627
Test:	DIN3230,EN12266-1

We are committed to offering porducts that meet a wide range of appications and requirments. We continually improve our product line by introducing new products and enhancing exsiting designs. Providing our customers with the best quality in the market.
