Casting Trunnion Ball Valve / SS Ball Valve API ISO CE Certification

Casting trunnion ball valve of 2"-16" CL150-1500 Carbon steel, Stainless steel

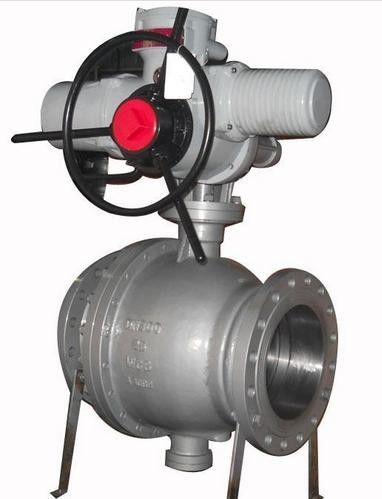

The KELITE Cast Trunnion Mounted Ball Valve’s split body construction complies with API 6D, ASME B16.34, API 608, API 607 and other relevant ASTM specifications. With a variety of material selections available as well as ISO 5211 complaint direct mount actuator pad, the Cast Trunnion Ball Valve can be customized and automated to suit a complete range of oil and gas applications.

1. Industry Specific Solutions

Production, transportation, storage and processing of oil and gas require the highest quality piping components. This is our world. In conjunction with our sister companies we supply customers with valves, hammer unions, couplings, connectors, actuators and other valve accessories
for high pressure process and piping at oil and gas facilities, both above ground and offshore.

2. World Class & Worldwide Service

We are dedicated to providing our customers with the best — the best brands, the best service and the best quality. Whether you require an automated valve for a highly engineered project or a replacement valve delivered same day, we are here to help. Our industry
experience, product selection and access to a global network of partners enable us to tailor a solution to solve your most difficult problem.

3. Expanding Our Product Portfolio

While others are collapsing their portfolios and cutting costs, we have an aggressive strategy to supply complimentary products to served markets
and increase service levels to establish ourselves as your single source provider for valve and flow control solutions.

• BLOWOUT PROOF STEM

Positive stem retention is achieved with integral T-type shoulder retained by the gland retainer

• ANTI-STATIC DESIGN

Positive anti-static grounding between the ball, stem and trunnion is a standard feature on the Trident Series. Valves sizes 16” and above are equipped with an additional anti-static spring on the trunnion shaft for added safety and reliability.

• BODY SEALING

The double sealing design of the O-Rings and fire safe graphite gaskets ensure zero leakage at the body and closure connections

• EMERGENCY SEALANT INJECTION

Valves are equipped with sealant injection fittings at the stem and seat area. The seat injection fittings have an integral buried check valve to provide backup sealing. Should leakage occur at either the seat or gland packing area, leakage can temporarily be stopped by injecting sealant into the secondary sealing system.

• FIRE SAFE CERTIFIED

Fire safe construction is standard on all trunnion mounted ball valves. In the event of a fire, secondary graphite seals and gaskets prevent leakage to atmosphere and seat ring to ball contact minimizes through leakage.

• SINGLE PISTON EFFECT SEATS

In very low line pressure applications, sealing between the seats and ball is achieved by seat springs forcing the seat into the ball, resulting in
a seal. In high line pressure applications, the line pressure, in conjunction with the spring load, forces the upstream seat ring against the ball
resulting in tighter sealing. The self-relieving seat, a standard design feature, prevents excessive pressure buildup within the valve by automatically relieving when body cavity pressure exceeds the spring and line seat pressure.

STANDARD MATERIALS OF CONSTRUCTION LEVER OPERATOR

Take WCB+ENP for example
1 Body Carbon Steel ASTM A216 WCB
2 Closure Carbon Steel ASTM A216 WCB
3 Ball Carbon Steel ASTM A105N + 3 mil ENP
4 Stem Carbon Steel ASTM A105N + 3 mil ENP
5 Trunnion Support Carbon Steel ASTM A105N + 3 mil ENP
6 Seat Ring Carbon Steel ASTM A105N + 3 mil ENP
7 Seat Insert Plastic Devlon®
8 Seat Fire Safe Seal Flexible Graphite Flexible Graphite
9 O-Ring Rubber HNBR 90
10 Backup Ring Plastic PTFE
11 Spring Inconel® X-750 UNS N07750
12 Gasket 316 + Graphite 316 + Graphite
13 Body Stud Carbon Steel ASTM A193 B7M
14 Body Nut Carbon Steel ASTM A194 2HM
15 Anti-static Plunger Stainless Steel ASTM A276 316
16 Anti-static Spring Stainless Steel ASTM A276 316
17 Thrust Washer Stainless Steel 304 + PTFE
18 Bearing Stainless Steel 316 + PTFE
19 Lantern Ring Stainless Steel ASTM A276 410
20 Segment Ring Stainless Steel ASTM A182 F6a
21 Segment Ring Retainer Stainless Steel ASTM A182 F6a
22 Stem Key Carbon Steel AISI 1045
23 Stem Pin Stainless Steel ASTM A276 304
24 Stem Retaining Pin Carbon Steel ASTM A193 B7M
25 Stem Fire Safe Seal Graphite Graphite
26 Gland Flange Carbon Steel AISI 1045
27 Gland Pin Carbon Steel AISI 1045
28 Cap Screw Carbon Steel ASTM A193 B7M
29 Seat Injection Fitting Stainless Steel ASTM A276 316
30 Check Valve Stainless Steel ASTM A276 316L
31 Bleed Fitting Stainless Steel ASTM A276 316
32 Gear Stud Carbon Steel AISI 1035
33 Gear Nut Carbon Steel AISI 1035
34 Gear Cast Steel ASTM A216 WCB
35 Lever Carbon Steel AISI 1045
36 T-Lever Cast Steel ASTM A216 WCB
37 Cap Screw, T-Lever Carbon Steel AISI 1035
