V Shape Notch Industrial Control Valves , Flanged Segmented Ball Valve

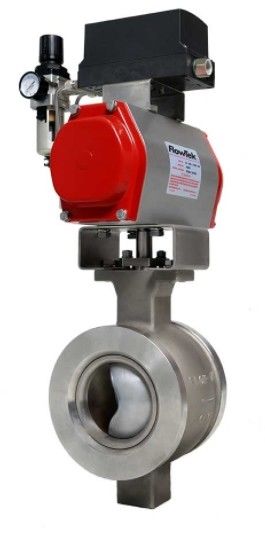

Flange Segment Control Valve with special V shape notch 1"-20",CL150-CL600

The Flange Segment Control Valve is a quarter-turn control valve. Flange Segment Control Valve core is designed with a special V shape notch. This consequently contributes to strong shear force and precise flow control. Thus, Hiton’s Flange Segment Control Valve is especially suitable for medium which contains fiber or solid particles.

Technical Data

Sizes:

DN 25~250mm NPS 1”-10” (wafer type)

DN 25~500mm NPS 1”-20” (flange type)

Seat Material:

Resiliant: PTFE/RPTFE/PEEK/DEVLON/NYLON

Metal: Tungsten Carbide/Satellite/Ni60

Pressure Rating:

PN 10/16/25/40/63

ANSI 150/300/600

Actuator :

Handle/Worm Gear

Pneumatic/Electric

Face to Face:

Wafer Type

ISA S75.04, IEC/DIN 534-3-2 (Flange Type)

Flange End:

GB/T 9113.1, JB/T 79.1, HG 20592,

ASME B 16.34, ISO 7005

(other connections on request)

Certificate: API, GOST, CE, ISO9001, TS

Application:

Pulp & Paper/ Petrochemical /

Printing & Dying /Pharmacy/ Beverage & Food

Body

• Integral body design ensures smooth flow, easy assembly and smaller shell leakage possibility.
• Both wafer and flange connection are available.

Core

• Specially designed V-notch ball provides strong cutting stress and tight sealing.
• Hard chromium, nitriding, and HCOF treatments are all available for the ball surface treatment, improving hardness, abrasion resistance, fatigue resistance, corrosion resistance and performance under high temperature.
• Well ground notched ball surface ensures small operating torque and tight seal, especially for metal seated segment valve.

Seat

• Metal, RTFE or Devlon are available for seat options.
• For valve rated under class 150, retainer is casted on valve body to eliminate any possible space between seat ring and body for residue accumulation. Consequently, this ensures perfect seal.

Stem

• The stem is finely ground to match the actuator excellently, which prevents rocking motion and potential failure of the segmented valve.
• Close-fit spline or pin-key are available for stem-core connection to provide reliable transmission without motion lost or dead band.

Sample Bom

We are committed to offering porducts that meet a wide range of appications and requirments. We continually improve our product line by introducing new products and enhancing exsiting designs. Providing our customers with the best quality in the market.
