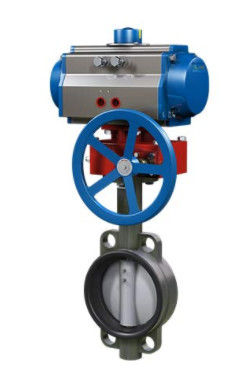

2"-56" CL150-600 pneumatic butterfly control valve, hydraulic linkage
Pneumatic butterfly valve has good two-way sealing function, it is used in pipelines of different media in petroleum, chemical industry, metallurgy, electricity, food, medicine, water supply and drainage, gas transportation and so on, it is the best device for regulating flow, cutting off or connecting fluid.
Choices of different materials can be separately applied to water, sewage, seawater, air, steam, gas, flammable gas, corrosive media, oils, food and other media.
Hydraulic control valves are used in many shipboard systems where access to valves is limited or a remote operation is required. This type of valve may be operated from one or more remote stations by a hydraulic control system. There are many configurations of globe, gate, and butterfly hydraulic control valves available for use on shipboard systems.
The valve shown is piston operated globe valve. It is normally held in the closed position by spring tension. When hydraulic pressure is admitted to the underside of the piston the force overcomes the spring tension causing the valve to open.
When hydraulic pressure is released from under the piston the spring acts to force the hydraulic fluid out of the cylinder and back to the remote control station, closing the valve.
A rachet lever is fitted to the valve to permit emergency opening of the valve by hand.
A flow control valve regulates the flow or pressure of a fluid. Control valves normally respond to signals generated by independent devices such as flow meters or temperature gauges. Control valves are normally fitted with actuators andpositioners. Pneumatically-actuated globe valves and Diaphragm Valves are widely used for control purposes in many industries, although quarter-turn types such as (modified) ball, gate and butterfly valves are also used.
Pneumatic Steam Control Valve, Pneumatic Diaphragm Control Valve, Pneumatic Control Valve with Positioiner
Valve body sizes DN 20 to DN 200 (NPS 3/4 through 8) and pressure classes PN 10-40 CL150 and 300.Shutoff capabilities of Class IV, V and VI. It is available with a complete accessory package, including Korean YTC SMART positioner and Spanish ACTREG actuator.
- Compact and light weight design reduces installed piping costs
- Ability to meet ANSI and other critical industry standards
- Many body, trim and seat options are available to handle a variety of applications and demanding critical services
We are committed to offering porducts that meet a wide range of appications and requirments. We continually improve our product line by introducing new products and enhancing exsiting designs. Providing our customers with the best quality in the market.
