|Size::||1/2inch(DN15) - 48 Inch (DN1200)||Pressure Rating::||150LB(PN16)-2500LB(PN420)|
|Material::||CI,DI,QT,ETC||Design & Manufacturing Standard::||API, BS, GB, KS, ASME,DIN,EN,|
|Bleed Pressure For Pneumatic Actuator:||0.3mpa-0.7mpa||Connection Size According To:||ISO5211|
ball float valve,
double acting pneumatic actuator
Spring return and double-acting pneumatic actuators with fiter, solenoid valve
Our company pneumatic actuators have two type according to the structural, one is Spring return pneumatic actuators, this type of Spring return pneumatic actuators can automatically self-closing or self-opening when power cut or stop of gas supply. anther type is double-acting pneumatic actuators, this type of pneumatic actuators need used gas to opened or closed.
TECHNICAL FEATURES for the pneumatic actuator:
1. Alodur hard anodized body
Extruded aluminum body with Alodur special hard anodization applied internally and externally for a complete corrosion protection, a lower friction coefﬁ cient and an increased surface hardness for the longest wearing resistance. Additional protective coatings are avail-able on the external surface for different environmental working conditions.
2. Pistons design
Dual piston rack and pinion design for compact construction, symmetric mounting position, high-cycle life and fast operation, reverse rotation can be accomplished in the ﬁ eld by simply inverting the pistons. Both pistons are anodized for a better corrosion and wearing resistance
3. Two independent external travel stop adjustments
As a standard, travel stops allowing adjustment for – 5° up to +15° on the close position, and for + 5° up to -15° on the open position. This allows accurate valve alignment, stroke limitation and provides on actuator a large travel adjustment.
4. Universal and anti-blowout drive shaft
Integral drive-shaft is available with double square as standard to permit versatility, lower and more ﬂ exible inventory. Others connec-tions and an aluminum adaptor on top are available on requests.
5. One compact and unique design
With identical body and end caps for double acting and spring return model to reduce inventory, allows ﬁ eld conversion, by adding or removing modular spring cartridge
6. Position indication
As standard actuators are supplied with a position indicators and a graduated ring allowing to achieve easily the correct actuatoralve position. Other types of position indicators suitable for direct mounting of sensors (P+F, IFM, etc.) and mechanical limit-switches avail-able on request.
7. Multiple bearings and guide
Bearings on piston and racks for precise operation, low friction, high cycle life and piston guides preventing shaft blowout
8. Modular preloaded spring
Cartridge design in high grade coated steel for simple range versatility, greater safety and corrosion resistance.
9. Electroless nickel-plated drive-shaft
Blow-out proof, bearing guided for improved safety and maximum cycle life.
10. Conncetion dimension of top flange acc.ISO5211
11. Big size body with large torque.

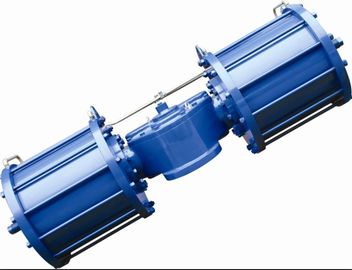

Our Pneumatic or hydraulic actuators, available in single or two cylinders for double acting or single cylinder /spring return
The AW series actuators are used in the pressure guard and gas /hydraulic control system, and are proven performers is high and extreme low temperature operation .Custom design and manufacturing is available to meet unique requirements.
Our pneumatic or hydraulic actuators are compact , lightweight and ideally suited for ball butterfly and non-lubricated plug valves ,or any quarter-turn (90degree) rotating mechanism .AW Series is available in single or two cylinders for double acting or single cylinder /spring return configurations.
More details kindly contact Kelite valves.
