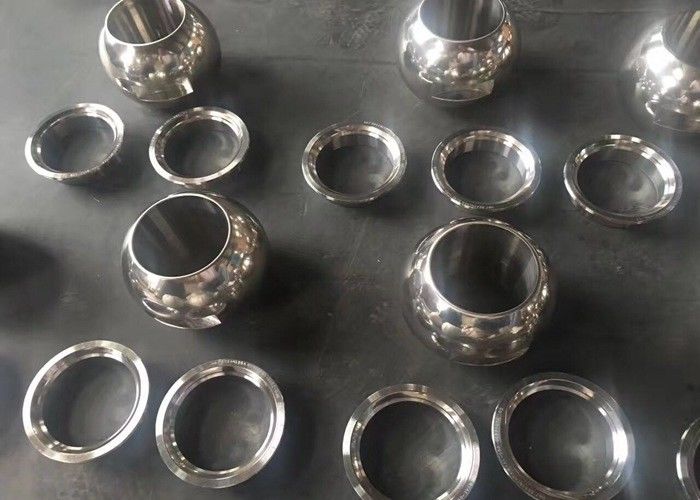

Three Dimensional Checked Valve Spare Parts / CNC Machined Ball Valve Ball

Three Dimensional Checked Valve Spare Parts / CNC Machined Ball Valve Ball
Three Dimensional Checked Valve Spare Parts / CNC Machined Ball Valve Ball Three Dimensional Checked Valve Spare Parts / CNC Machined Ball Valve Ball Three Dimensional Checked Valve Spare Parts / CNC Machined Ball Valve Ball

Large Image :  Three Dimensional Checked Valve Spare Parts / CNC Machined Ball Valve Ball

Product Details:
Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 2"-56",CL150-2500
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 20-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000-10000PCS per month
Detailed Product Description
Size:: NPS 1/2"~56" Pressure Rating:: Class 150~2500,
Material:: A105, LF2, F304, F316,F304L, F316L, F51 Etc Design & Manufacturing Standard:: API 6A, API 6D, API 6DSS, BS 5351, ASME B16.34
Face To Face:: ASME B16.10, API 6D End Connection:: ASME B16.5, ASME B16.47, ASME B16.25
High Light:

ball float valve

,

double acting pneumatic actuator

Ball valves ball, CNC machined, heat number marked, three dimensional checked



Material of stem: 4140+ENP,17-4PH,A105+ENP,LF2+ENP,F22,F304,F304L,F316,F316L,F51,F321,Monel, etc

Size of forged body: 1/2inch - 56 inch

Test: MT,PT,UT testing, hardness testing, sample test specimen send to lab to test.

The highest accuracy: ±0.005mm according to the customer request.

Degree of finish: Ra0.1-Ra3.2 according to the customer request.

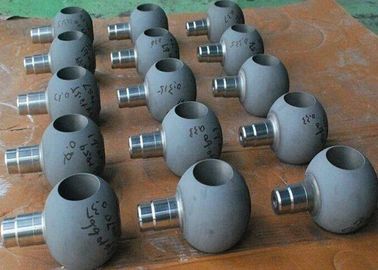

Ball is a important part of the ball valves,the balls are forging, so the strengthand toughness properties are very good. It can be divided into the floating ball or trunnion ball from the structure,according to the manufacturing process,it also can be divided into forged ball ,cast ball and welded ball.



The advantages as follows:

  1. The dimensions is very accurate.we can guarantee the size error within 20micron for each body.

  2. The surface finish is very good, we must polishing processing on each ball after we used the ball crusher to machine.

  3. we can save more cost of materials because we have the forging company and CNC machining by ourself.

  4. The forging or bar material are no cracks and packing with pearl wool to protect the surface.

  5. Kelite has three-dimensional coordinate instrument to ensure the dimension meet drawing requirement.

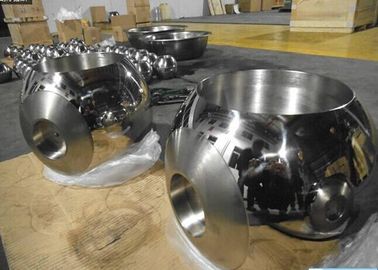

Three Dimensional Checked Valve Spare Parts / CNC Machined Ball Valve Ball 0Three Dimensional Checked Valve Spare Parts / CNC Machined Ball Valve Ball 1



Each ball we can provide inspection report to clients as below.

Three Dimensional Checked Valve Spare Parts / CNC Machined Ball Valve Ball 2Three Dimensional Checked Valve Spare Parts / CNC Machined Ball Valve Ball 3
