Size:: | NPS 2"~56" | Pressure Rating:: | Class 150~2500,API 2000-15000 |
---|---|---|---|
Material:: | A105, LF2, F304, F316,F304L, F316L, F51 Etc | Design & Manufacturing Standard:: | API 6A, API 6D, API 6DSS, BS 5351, ASME B16.34 |
Face To Face:: | ASME B16.10, API 6D | End Connection:: | ASME B16.5, ASME B16.47, ASME B16.25 |
Test And Inspection:: | ISO 5208, API 6D, API598 | Operation Method:: | Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator |
High Light: | trunnion mounted ball valve,trunnion type ball valve |

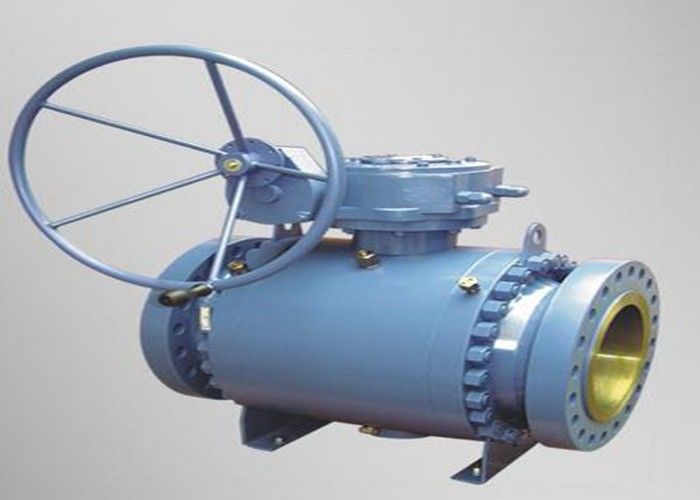

Forging trunnion ball valve of 2"-56" CL150-2500 CS and SS ball valve
Forging split body, full bore/reduced bore, trunnion mounted, double block and bleed, single or double piston effect, anti-blow out stem, anti-static device, fire-safe certified to API-607/6FA/ISO 10497, spring loaded Seats, sealant injection, NACE MR-01-75, NYLON, DEVLON&PEEK seat inserts, designed and tested according to ASME B16.34, BS5351 and API-6D,API-6DSS, API 6A.
Pressure rating:150LB-2500LB
Size:2”-56”
Standards:ANSI, GB, DIN
Temperature:-196℃-260℃
Technical Features:• Design Standards: ISO 17292 / ASME B16.34/API 6D
• Two/Three piece body
• Top flange according to ISO 5211
• Full/Reduced bore Design optional
• Fire Safe according to API 607 and API 6FA
• With anti-static device
• DBB function
• Single/Double piston effect valve seat optional
• Anti-cold flow compensation valve seat with lip
• Anti blow stem with low effusion package
• Sealing grade ≥ ANSI VI
• Compliance with NACE MR0175 (optional)
• Connection mode: flange, BW
Main materials:Valve body: carbon steel, stainless steel, special alloy steel
Valve ball: carbon steel/ENP, stainless steel
Valve stem: stainless steel
Valve seat: PTFE, RPTFE, PCTFE, PEEK, NYLON, graphite, etc
