Top Entry Rising Stem Ball Valve Trunnion Mounted Feature Spring Loaded Seat

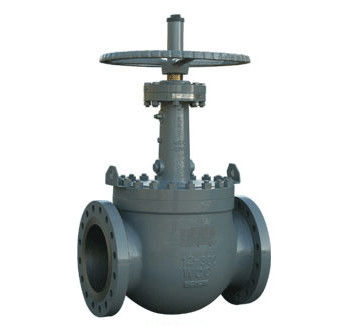

Large Image : Top Entry Rising Stem Ball Valve Trunnion Mounted Feature Spring Loaded Seat

Product Details:

Place of Origin:	China
Brand Name:	Kelite Valve
Certification:	API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number:	2"-24",CL150-900

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	Plywood packing or fumigation packing
Delivery Time:	30-70days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000-5000PCS per month

Contact Now

Detailed Product Description

Size::	NPS 2"~24"	Pressure Rating::	Class 150~900
Material::	A105,WCB, LF2, LCC, F304, CF8, F316, F316L, F51 Etc	Design & Manufacturing Standard::	API 6A, API 6D, API 6DSS, BS 5351, ASME B16.34
Face To Face::	ASME B16.10, API 6D	End Connection::	ASME B16.5, ASME B16.47, ASME B16.25
Test And Inspection::	ISO 5208, API 6D, API598	Operation Method::	Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator
High Light:	trunnion mounted ball valve , top entry ball valve

API 6D top entry rising stem trunnion ball valve of 2"-24" CL150-900

top entry rising stem trunnion ball valve, full bore/reduced bore, trunnion mounted, double block and bleed, single or double piston effect, anti-blow out stem, anti-static device, fire-safe certified to API-607/6FA/ISO 10497, spring loaded Seats, sealant injection, NACE MR-01-75, NYLON, DEVLON&PEEK seat inserts, designed and tested according to ASME B16.34, BS5351 and API-6D,API-6DSS, API 6A.

NO	NAME OF PART	NO	NAME OF PART
1	BODY	18	O-RING
2	SLEEVE	19	PACKING WASHER
3	SEAT	20	ANTI-FIRE RING
4	BALL	21	PACKING BUSHING
5	SEAT RING	22	PACKING GLAND
6	O-RING	23	SWING BOLT
7	STEM	24	PIN
8	GLAND	25	TIGHT PIN
9	TIGHT BOLT	26	BOLT
10	NUT	27	GUIDE PIN
11	SLIP PIN	28	BOLT
12	YOKE	29	NUT
13	O-RING	30	STEM NUT
14	ANTI-FIRE RING	31	DRIVE DEVICE
15	BONNET	32	COVER
16	STUD BOLT	33	INDICATOR ROD
17	NUT	34	INJECTION

DESIGN AND MANUFACTURING STANDARDS

Basic Design	API 6D
Shell Wall Thickness	API 6D
Face to Face Dimension	API 6D
Flange End Dimension	ANSI B16.5 (1/2” to 24”) ANSI B16.47 (26” & up)
Butt-Weld End Dimension	ANSI B16.25
Inspection & Testing	API 6D
Fire Safe Design	API 6FA/BS 6755

BILL OF MATERIALS

NO	NAME OF PART	MATERIAL	NO	NAME OF PART	MATERIAL
1	BODY	A216-WCB	18	O-RING	VITON
2	SLEEVE	A102 F304	19	PACKING WASHER	A276 410
3	SEAT	F316	20	ANTI-FIRE RING	GRAPHITE + 304
4	BALL	A105 + 316	21	PACKING BUSHING	A276 410
5	SEAT RING	PTFE	22	PACKING GLAND	A216-WCB
6	O-RING	VITON	23	SWING BOLT	AISI 1035
7	STEM	F316 + N	24	PIN	AISI 1035
8	GLAND	A36	25	TIGHT PIN	AISI 1045
9	TIGHT BOLT	65Mn	26	BOLT	AISI 1045
10	NUT	AISI 1035	27	GUIDE PIN	17 - 4PH
11	SLIP PIN	17 - 4PH	28	BOLT	A193 B7
12	YOKE	A276 410	29	NUT	A194 2H
13	O-RING	VITON	30	STEM NUT	C95200
14	ANTI-FIRE RING	GRAPHITE + 304	31	DRIVE DEVICE	ASSEMBLY
15	BONNET	A216-WCB	32	COVER	A216 410
16	STUD BOLT	A193 B7	33	INDICATOR ROD	A36
17	NUT	A194 2H	34	INJECTION	ASSEMBLY

CLASS 150 - Rising Stem Ball Valves

DIMENSIONS & WEIGHTS

SIZE	in	2	2.5	3	4	6	8	10	12	14	16	18	20	24
SIZE	mm	51	64	76	102	152	203	254	305	356	406	457	508	610
A1 (RF)	in	7	7.5	8	9	15.5	18	21	24	27	30	34	36	42
A1 (RF)	mm	178	190	203	229	394	457	533	610	686	762	864	914	1067
A2 (BW)	in	8.5	9.5	11	12	18	20.5	22	25	30	33	36	39	45
A2 (BW)	mm	216	241	283	305	457	521	559	635	762	838	914	991	1143
H2 (HW)	in	15.2	15.5	15.8	20	27.2	31	39	46.5	49.4	61.6	64.4	67.1	74.1
H2 (HW)	mm	385	393	402	510	690	785	995	1183	1254	1565	1637	1705	1883
H3 (GO)	in	18.3	18.9	19.7	20	26.8	32.3	35.8	42.9	52.4	54.3	57	72.4	73.6
H3 (GO)	mm	465	480	500	510	680	820	910	1090	1330	1380	1450	1840	1870
W1 (HW)	in	8	12	12	12	16	20	24	24	26	26	28	28	32
W1 (HW)	mm	200	300	300	300	400	500	600	600	650	650	700	700	800
W2 (GO)	in	8	8	122	12	12	16	16	16	24	24	32	32	32
W2 (GO)	mm	200	200	300	300	300	400	400	400	600	600	800	800	800
WGT	lb	59.1	67.2	80.7	121.0	228.1	360.5	542.9	779.6	995.5	1435.9	1799.5	2178.9	3846.7
WGT	kg	27	31	37	55	104	164	247	354	453	653	818	990	1749

CLASS 300 - Rising Stem Ball Valves

DIMENSIONS & WEIGHTS

SIZE	in	2	2.5	3	4	6	8	10	12	14	16	18	20	24
SIZE	mm	51	64	76	102	152	203	254	305	356	406	457	508	610
A1 (RF)	in	8.5	9.5	11	12	18	20.5	22	25	30	33	36	39	45
A1 (RF)	mm	216	241	283	305	457	521	559	635	762	838	914	991	1143
A2 (BW)	in	8.5	9.5	11	12	18	20.5	22	25	30	33	36	39	45
A2 (BW)	mm	216	241	283	305	457	521	559	635	762	838	914	991	1143
H2 (HW)	in	15.2	15.5	15.8	20	27.2	31	39	46.5	49.4	61.6	64.4	67.1	74.1
H2 (HW)	mm	385	393	402	510	690	785	995	1183	1254	1565	1637	1705	1883
H3 (GO)	in	18.3	18.9	19.7	20	26.8	32.3	35.8	42.9	52.4	54.3	57	72.4	73.6
H3 (GO)	mm	465	480	500	510	680	820	910	1090	1330	1380	1450	1840	1870
W1 (HW)	in	8	12	12	12	16	20	24	24	26	26	28	28	32
W1 (HW)	mm	200	300	300	300	400	500	600	600	650	650	700	700	800
W2 (GO)	in	8	8	122	12	12	16	16	16	24	24	32	32	32
W2 (GO)	mm	200	200	300	300	300	400	400	400	600	600	800	800	800
WGT	lb	77.9	107.6	129.1	199.1	381.9	591.8	879.6	1334.7	1866.6	2674.4	3513.6	4159.0	6348.9
WGT	kg	35	49	59	91	174	269	400	607	848	1216	1597	1890	2886

CLASS 600 - Rising Stem Ball Valves

DIMENSIONS & WEIGHTS

SIZE	in	2	2.5	3	4	6	8	10	12	14	16	18	20	24
SIZE	mm	51	64	76	102	152	203	254	305	356	406	457	508	610
A1 (RF)	in	11.5	13	14	17	22	26	31	33	35	39	43	47	55
A1 (RF)	mm	292	330	356	432	559	660	787	838	889	991	1092	1194	1397
A2 (BW)	in	11.5	13	14	17	22	26	31	33	35	39	43	47	55
A2 (BW)	mm	292	330	356	432	559	660	787	838	889	991	1092	1194	1397
H2 (HW)	in	17.0	18.3	20.3	22.5	30.4	38	48.2	53.1	58.6	62.6	67.7	71	76.6
H2 (HW)	mm	430	465	515	572	773	967	1225	1350	1490	1590	1720	1805	1945
H3 (GO)	in	19.7	21	22.6	24.6	31.1	35.4	42.9	53.1	58.6	64.5	68.5	76	78.9
H3 (GO)	mm	501	535	575	625	790	900	1090	1350	1490	1640	1740	1930	2005
W1 (HW)	in	12	16	20	24	24	26	26	28	28	30	30	32	32
W1 (HW)	mm	300	400	500	600	600	650	650	700	700	750	750	800	800
W2 (GO)	in	12	12	12	16	16	16	24	24	24	32	32	32	32
W2 (GO)	mm	300	300	300	400	400	400	600	600	600	800	800	800	800
WGT	lb	115.7	161.4	188.4	360.5	766.2	1205.4	1828.8	2871.1	3459.9	4952.0	6954.0	8360.7	12611.1
WGT	kg	53	73	86	164	348	548	831	1306	1573	2251	3161	3800	5732

CLASS 900 - Rising Stem Ball Valves

DIMENSIONS & WEIGHTS

SIZE	in	2	2.5	3	4	6	8	10	12	14	16	18	20
SIZE	mm	51	64	76	102	152	203	254	305	356	406	457	508
A1 (RF)	in	14.5	16.5	15	18	24	29	33	38	40.5	44.5	48	52
A1 (RF)	mm	368	419	381	457	610	737	838	965	1029	1130	1219	1321
A2 (BW)	in	14.5	16.5	15	18	24	29	33	38	40.5	44.5	48	52
A2 (BW)	mm	368	419	381	457	610	737	838	965	1029	1130	1219	1321
H2 (HW)	in	18.9	19.7	22	22.6	30.7	38.6	46.1	52.4	59.8	68.1	72.4	75.6
H2 (HW)	mm	480	500	560	575	780	980	1170	1330	1520	1730	1840	1920
H3 (GO)	in	22	23.2	24	27.2	27.8	36.6	44.5	52.4	58.3	67.3	75.6	81.9
H3 (GO)	mm	560	590	610	690	705	930	1130	1330	1480	1710	1920	2080
W1 (HW)	in	12	12	14	16	18	20	22	22	24	26	28	32
W1 (HW)	mm	300	300	350	400	450	500	550	550	600	650	700	800
W2 (GO)	in	12	12	12	16	16	24	24	32	32	32	32	32
W2 (GO)	mm	300	300	300	400	400	600	600	800	800	800	800	800
WGT	lb	220.8	417.2	444.1	468.4	1218.8	2098.4	3357.4	4148.0	5972.0	7460.3	10410.7	19637.7
WGT	kg	100	190	202	213	554	954	1526	1885	2716	3391	4732	8926
