Carbon Steel Cast Check Valve Wafer Ends Double Disc 100% Leak Proof Sealing

China Carbon Steel Cast Check Valve Wafer Ends Double Disc 100% Leak Proof Sealing supplier

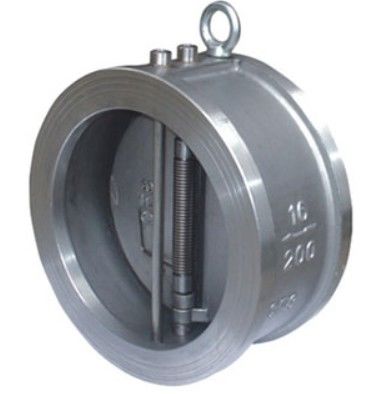

Large Image :  Carbon Steel Cast Check Valve Wafer Ends Double Disc 100% Leak Proof Sealing

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 2"-40", CL150-2500

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 30-70days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 2"~40" Pressure Rating:: Class 150~2500
Material:: WCB, LCB,WC6, WC9, C12, C5,CF8, CF8M, CF3, CF3M Etc Design & Manufacturing Standard:: API 594, BS 1868, ASME B16.34
Face To Face:: ASME B16.10, API 6D BSEN558 End Connection:: ASME B16.5, ASME B16.47, ASME B1.20.1 , ASME B16.11,DIN 2453-2551, ASME B16.25
Test And Inspection:: ISO 5208, API600, API598, BS 6755 Operation Method:: Swing Type, Lifting Type

API 594 Wafer Cast Steel Check Valves, dual plate 2"-40" CL150-2500



Double disc check valve design is generally stronger, lighter, smaller, more efficient and less expensive. Its meets API 594, which is approximately one fourth the face to face dimensions and 15% to 20% the weight,noney in initial valve coast and provides lower installation cost. The disc is litfed first by two spring to prevent.Suitable for horizontal or vertical up positions, In horizontal position flow allows plates to function free and under lower flow conditions as compared to swing check - Reduces pressure loss, improves dynamicthse and eliminates valve chatter.



Design Standard

  • Design and Manufacture Stand: API 594
  • End to End Dimension Standard: API6D
  • Flange End Dimension Standard: ANSI B16.5
  • Inspection and Test Standard: API 598
Material Carbon Steel Body A216 WCB
Disc A351 CF8
Spring SS304
Pin A182 F6
Retainer A182 F6
Stainless Steel Body A351 CF8 CF8M CF3 CF3M
Disc A351 CF8 CF8M CF3 CF3M
Spring SS304
Pin A182 304 316 F51
Retainer A182 304 316 F51
Alloy Steel Body A217 WC1 WC6 WC9 C5 C12
Disc A351 CF8
Spring A182 F304
Pin A182 F6
Retainer A182 F6
Cast Iron Body GG25/GGG40
Disc GGG40 CF8 CF8M
Spring A182 F304
Ping A182 410 416 420 431 304 316
Retainer A182 410 416 420 431 304 316





API 594 Cast Steel Wafer Check Valves , Class 150 Double Disc Butterfly Check Valve

API 594 Cast Steel Wafer Check Valves , Class 150 Double Disc Butterfly Check ValveAPI 594 Cast Steel Wafer Check Valves , Class 150 Double Disc Butterfly Check Valve



Sample Dimensions Table(mm)

NPS inch 2 3 4 5 6 8 10 12 14 16 18 20 24 30 32 36
mm 50 80 100 125 150 200 250 300 350 400 450 500 600 750 800 900
Class150 L 43 64 64 70 76 89 114 114 127 140 152 152 178 229 241 241
Class 300 D 107 145 162 192 218 273 328 378 438 489 540 590 690 800 905 1000
