Stable Performance Cast Check Valve , CS and SS Swing Check Valve

China Stable Performance Cast Check Valve , CS and SS Swing Check Valve supplier

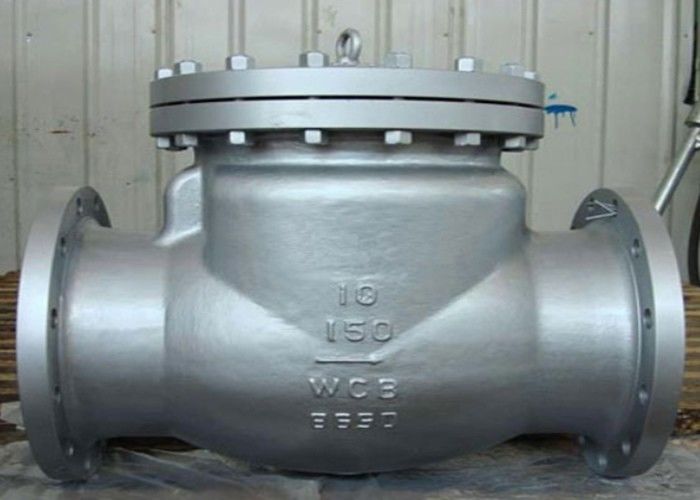

Large Image :  Stable Performance Cast Check Valve , CS and SS Swing Check Valve

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 2"-36", CL150-1500

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 30-70days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 2"~36" Pressure Rating:: Class 150~2500
Material:: WCB, LCB,WC6, WC9, C12, C5,CF8, CF8M, CF3, CF3M Etc Design & Manufacturing Standard:: API 600, BS 1868, ASME B16.34
Face To Face:: ASME B16.10, API 6D BSEN558 End Connection:: ASME B16.5, ASME B16.47, ASME B1.20.1 , ASME B16.11,DIN 2453-2551, ASME B16.25
Test And Inspection:: ISO 5208, API600,BS 6755 Operation Method:: Swing Type, Lifting Type

Swing cast check valve 2"-36" CL150-1500 RF, non-return, one-direction valve



Swing check valve is one type for the check valves, the check valve have anther name is non-return valve,this swing check valve only can horizontal installation,the speed of the closing for swing check valve is very quickly , also the seal is very good,the highest pressure for swing check valve can up to 2500LB(PN420), the body of the check valve can choose forged material or choose cast steel,this valve is opened or closed by the valve disc to rotate around the spindle outside the seat of the valves; it is an automatic valve, working principle of this valves are automatically opened or closed by the force generated by the medium flowing within the pipeline. Its major function is to prevent the backflow of the medium in the pipeline, reverse rotation of the pump and its driving motor, and discharge of the medium in the container.



Features for swing check valve

Compact and reasonable product structure, reliable tightness and good performance;

Smooth fluid passageway and small fluid resistance;

Swing type disc.

Can be designed with a Damping Cylinder.

Rapid closing and flexible actions of the valve disc .

Small closing impact, water hammer is not liable to be generated.

Smooth fluid passageway and small fluid resistance.



Product Specification

Face to Face

  Design Spec. Flange End Test & Check Pressure-Temp. Supply
Product Specification API600 ANSI B 16.10 ANSI B 16.5 API598 ANSI B 16.34 MSS SP-25 API600
  API6D API6D   API6D     API6D

Sample Material list

Part name Part Material       Part Name
Body/Bonnet A216-WCB A217-WC6 A352-LCB A351-CF8M Body/Bonnet
Dissc A105 A182-F11 A182-F304 A182-F316 Dise
Rotating shaft A216-WCB A217-WC6 A182-F6a A182-F316 Swing Arm
Gasket 18~8 /18~8Flexible Graphite       Gasket
Bolt A193-B7 A193-B7 A193-B7M A193-B8 Bolt
Temperature -29~425°C -29~550°C 46~350°C 40~550°C Suitable Temp.
Medium Water, Oil, Steam Steam, Oil Steam , Oil Nitric Acid Suitable Medium

Main External and Connection Dimension (Unit:mm)



Type NPS DN Main external and connection dimension
in mm L D D1 D2 b z-φd H
  2" 50 203 152 120.6 92 19 4-φ19 161
  21/2" 65 216 178 139.7 105 22 4-φ19 180
  3" 80 241 190 152.4 127 24 4-φ19 190
  4" 100 292 229 190.5 157 24 8-φ19 203
  5" 125 330 254 215.9 186 24 8-φ22 229
KLT-150Lb 6" 150 356 279 241.3 216 25 8-φ22 257
  8" 200 495 343 298.4 270 29 8-φ22 292
  10" 250 622 406 362 324 30 12-φ25 355
  12〃 300 698 483 431.8 381 32 12-φ25 396
  14" 350 787 533 476.2 413 35 12-φ25 445
  16" 400 864 597 539.8 470 37 16-φ29 490
  18" 450 978 635 577.8 533 40 16-φ32 520
  20〃 500 978 698 635 584 43 20-φ32 546
  24" 600 1295 813 749.3 692 48 20-φ35 880
  2" 50 267 165 127 92 22 8-φ19 179.5
  21/2" 65 292 190 149.4 105 25 8-φ22 190
  3" 80 318 210 168.1 127 29 8-φ22 212.4
  4" 100 356 254 200.2 157 32 8-φ22 246
  5" 125 400 279 235 186 35 12-φ22
  6" 150 444 318 269.7 216 37 12-φ25 292
  8" 200 533 381 330.2 270 41 16-φ29 328
KLT300Lb 10" 250 622 444 387.4 324 48 16-φ32 378.6
  12" 300 711 521 450.6 381 51 20-φ32 420
  14" 350 838 584 514.4 413 54 20-φ35 530
  16" 400 864 648 571.5 470 57 20-φ35 584
  18" 450 978 711 628.6 533 60 24-φ35 610



END CONNECTIONS
Our standard production covers valves with:

  1. Flange ends with Raised Face (RF), Flat Face (FF) or Ring Type Joint (RTJ) that conform to B16.5.
  2. Butt-welding ends (BW) that conform to B16.25.
  3. All face-to-face/end-to-end dimensions conform to B16.10.
  4. Other special end connections are supplied according to customer’s requirements.



ACCESSORIES/OPTIONAL DESIGNS
Counter flange are available as an accessory. Piston, tilting disc or API- 6D designs are also available to meet the customers requirements. Drains and bypasses are available as specified by the customer.



We are committed to offering porducts that meet a wide range of appications and requirments. We continually improve our product line by introducing new products and enhancing exsiting designs. Providing our customers with the best quality in the market.
