Carbon Steel Globe Valve Long Working Lifespan NRS Stem Structure

China Carbon Steel Globe Valve Long Working Lifespan NRS Stem Structure supplier

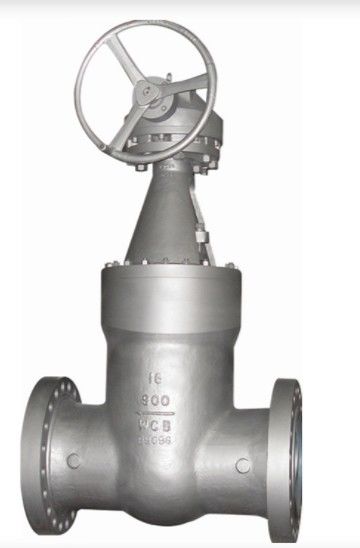

Large Image :  Carbon Steel Globe Valve Long Working Lifespan NRS Stem Structure

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 2"-20", CL900-1500

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 30-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000-5000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 2"~20" Pressure Rating:: Class 900~1500
Material:: CF8M, CF3,CF3M, CN7M, CF8,WCB, LCB, WC6, WC9, C12, C5, CF8, CF8M, CF3, CF3M Design & Manufacturing Standard:: BS 1873 ,ASME B16.34, API 600
Face To Face:: ASME B16.10 Flanged Dimenson:: ASME B16.5, ASME B16.47, BSEN 1092
End Connection:: ASME B16.25BSEN 558, ASME B16.5 ,BSEN 1092 Operation Method:: Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator

2"-20" CL900-2500 self sealing cast globe valve, V packing and long service time



  • Material of pressure seal globe valve: WCB,LCB,WC6,WC9,CF8,CF8M.CF3.CF3M,CN7M,904L
  • Size of pressure seal globe valve: 2inch(DN50) - 20 inch (DN500)
  • Pressure of pressure seal globe valve: 900LB(PN150)-2500LB(PN420)
  • Connection type: Flange(RF,RTJ) BW,SW
  • Kind of drive: Wrench,Gear,Electric actuators and pneumatic actuators
  • Operating temperature : -100℃ - 600℃



Working medium : water, gas,oil.Sulfuric acid and hydrochloric acid

The pressure seal globe valve is one type in globe valve,it usually used for high pressure piping line,they are designed in accordance with BS1873 and ASME B16.34 for service of high temperature and high pressure and are widely used in fossil fuel power plant. Compared with bolted bonnet joint valves, it provides absolute reliable sealing of the bonnet joint, so that the pressure seal valves are more compact and rigid as well as maintenance cost-effective at high temperature and high pressure service.

The two openings for medium flowing in and out are in the same direction, forming an angle of 180°. In addition, at seat and disc seal surface are over-lay with iron-base alloy or Co-base alloy or carbide alloy for long duration. For large size valves will be designed with main disc and vice disc type, and medium flow from up disc to down disc, that the operation torque will be greatly decreased and the seat tightness performance are more reliable.



  • Design standard as per: BS1873,ASME B16.34, GB/T 12235, DIN3356
  • Generally, lift of disc is just 1/4 of the valve seat port, ensuring a short opening and closing time.
  • Only one sealing face is designed on the valve body and valve disc,
  • For large size valves will be designed with main disc and vice disc type, and medium flow from up disc to down disc.
  • Full stellite overlay seat sealing surface
  • Good for manufacturing process and easy to maintain.
  • The valve is designed as a back seat sealing structure.
  • Use flexible and woven graphite collaboration type packing(V type).
  • Optional by-pass design,
  • Top flange size as ISO5211 design easy to install pneumatic actuators and electric actuators.



Dimensional drawing for pressure seal globe valve

Globe valve



Specifications

Pressure seal globe valve:

OS&Y, Rising stem or NRS Stem structure
Pressure seat Bonnet, Threaded or welded seat ring,better seal for better pressure
High pressure self sealing globe valves has following advantages:
self seal structure can make high pressure valve body, the valve cover joint structure compact, save labor and material, safe and reliable.



Product Details
Design and Manufacture
ANSI B16.34,BS1873
Face to face(end to end)
ANSI B16.10
Flanged connection
ANSBI B16.5
Butt welded end
ANSI B16.25
Test and inspection
API598



NO.
Part name
WCB
LCB
WC6
WC9
08
Stud and nut
A193 Gr B7/A194 Gr 2H
A193 Gr B7/A194 Gr 4
A193 Gr B16/A194 Gr 4/7
A193 Gr B16/A194 Gr 4/7
07
Gland packing
Graphite
Graphite
Graphite
Graphite
06
Gasket
Soft lron
Soft lron
Ss304
Ss304
05
Thrust ring
A105
A182 F304
A182 F11
A182 F22
04
Back up ring
A105
A182 F304
A182 F11
A182 F22
03
Yoke
A216 Gr WCB
A352 Gr LCB
A271 Gr WC6
A271 Gr WC9
02
Bonnet
A216 Gr WCB
A352 Gr LCB
A271 Gr WC6
A271 Gr WC9
01
Body
A216 Gr WCB
A352 Gr LCB
A271 Gr WC6
A271 Gr WC9



Dimensions
Class 1500
Size
inch
2
2-1/2
3
4
5
6
8
10
L-L1
mm
368
419
470
546
673
705
832
991
L1-SP
mm
216
254
305
405
483
559



711
864
H
mm
565
580
380
800
825
1130
1450
1535
K
mm
300
350
400
450
450
450
450
500
WT
Kg
80
90
115
160
300
410
650
1150
