Bellow Seal Cast Globe Valve Back Seat Sealing Long Working Lifespan

Certification
Good quality Trunnion Ball Valve for sales
Good quality Trunnion Ball Valve for sales
Really good performance valves with completitive cost, I hope both parties will work for longer.

—— Rashid Lodhi

Good after sale service, I really appreciated that the each step maintenance instruction is very detailed and good for my end user even they do not know valves at all.

—— SERKAN KAVRAK

Wesley from Kelite Group was very perfessional on handling our FAT, 3.2 certification, 3rd party inspection and accompany my clients to aduit each supplier, also a good driver for lasts more than 12 hours driving to pick up my clients, impressive!

—— Ajay Seth

I'm Online Chat Now

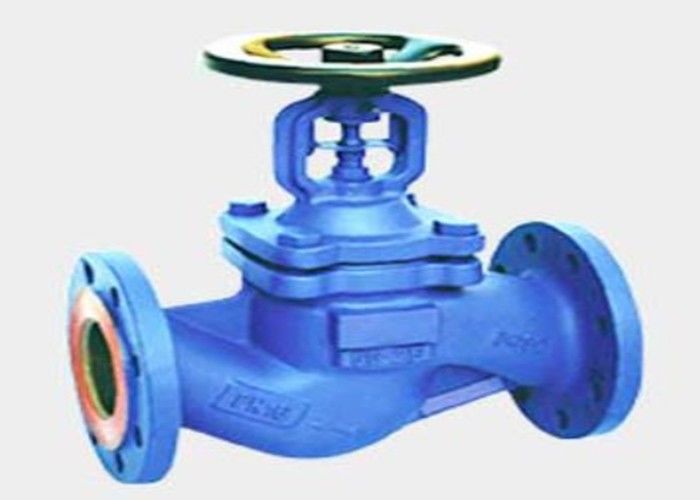

Bellow Seal Cast Globe Valve Back Seat Sealing Long Working Lifespan

China Bellow Seal Cast Globe Valve Back Seat Sealing Long Working Lifespan supplier

Large Image :  Bellow Seal Cast Globe Valve Back Seat Sealing Long Working Lifespan

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 2"-20", CL150-1500

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 40-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000-5000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 2"~20" Pressure Rating:: Class 150~1500
Material:: CF8M, CF3,LF2, CN7M, CF8CWCB, LCB, WC6, WC9, C12, C5, CF8, CF8M, CF3, CF3M Design & Manufacturing Standard:: BS1873,ASME B16.34, GB/T 12235, DIN3356
Face To Face:: ASME B16.10 Flanged Dimenson:: ASME B16.5, ASME B16.47, BSEN 1092
End Connection:: ASME B16.25BSEN 558, ASME B16.5 ,BSEN 1092 Operation Method:: Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator
High Light:

cast steel globe valve

,

carbon steel globe valve

2"-20" CL150-1500 bellow seal cast globe valve, back seat sealing



  1. Material of bellows globe valve: Cast steel, cast iron and stainless steel.

  2. Size of bellows globe valve: 1/2inch(DN15) - 20inch (DN500)

  3. Pressure of bellows globe valve: 150LB(PN10)-1500LB(PN250)

  4. Connection type : Flange(FF,RF,FM,RTJ) BW.

  5. Kind of drive: Wrench,Gear,Electric actuators and pneumatic actuators

  6. Operating temperature: -30℃ - 300℃

  7. Working medium : water, toxic gas,oil,coal gas,Sulfuric acid and hydrochloric acid

Introduction for Bellow seal globe valve



Globe valve with bellow seal is one type of the globe valve,why that name is bellow seal globe valve?because this globe valve have a bellow,one end of the bellow welded on the stem and anther end installed between the body and the bonnet, this structure design ensures that the media will not through the valve stem and bonnet leaked outside the valve.so it is very safely valves.other globe valves are used the Graphite or PTFE for the packing ,the packing is easy to wear and tear or damage when the valves used for long time,the medium will outleakage when the packing have broken, the bellow seal globe valve make up for the shortcomings,the material of the bellow usually used SS304L,SS316L,INCONEL or Hastelloy.so the bellow isn't easy to have broken, so the bellow seal globe valve are used for impotant piping line,it mainly used in chemical and petroleum and natural gas.



Features for Bellow seal globe valves:



Design standard as per: BS1873,ASME B16.34, GB/T 12235, DIN3356

Generally, lift of disc is just 1/4 of the valve seat port, ensuring a short opening and closing time.

Only one sealing face is designed on the valve body and valve disc,

For large size valves will be designed with main disc and vice disc type, and medium flow from up disc to down disc.

Full stellite overlay seat sealing surface

Good for manufacturing process and easy to maintain.

The valve is designed as a back seat sealing structure.

Use stainless steel bellow Instead of the packing,the seal more reliable.

Optional by-pass design,

Top flange size as ISO5211 design easy to install pneumatic actuators and electric actuators



Dimensional drawing for bellowing seal globe valve:

bellow sealed globe valve







FEATURES
Size: 1/2"~32"
Class: 150~900Lb
OS & Y, Rising Stem
Formed Bellows
Design of Bellows and Packing Dual Stem Seal
Guaranteeing Zero Leakage Of Stem
Impact Hand Wheel & Gear Optional
SPECIFICATIONS
Design ASME B16.34/BS 1873
Face to Face ASME B16.10
End Flange ASME B16.5
BW End ASME B16.25
Test API 598
Special NACE MR-01-75
Application Water,Oil,Gas



MAIN PARTS AND MATERIALS
No.
Parts Name Material
1
Body A216 WCB
2
Disc SS304
3
Disc Cover SS304
4
Bellow SS304
