Slab Cast Gate Valve , Carbon Steel Gate Valve Pneumatic Actuator

China Slab Cast Gate Valve , Carbon Steel Gate Valve Pneumatic Actuator supplier

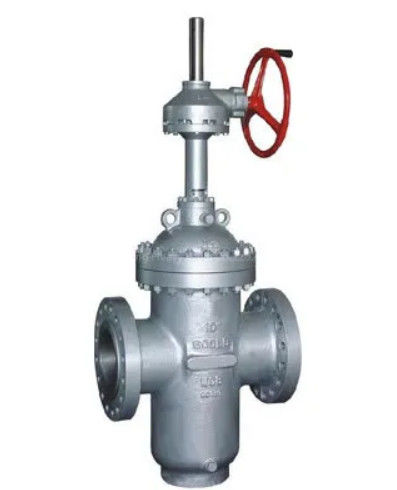

Large Image :  Slab Cast Gate Valve , Carbon Steel Gate Valve Pneumatic Actuator

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 2"-48", CL150-1500

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 50-70days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000-5000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 2"~48" Pressure Rating:: Class 150~1500
Material:: WCB, LCB, WC6, WC9, C12,CF8, CF8M, CF3,CF3M,etc Temperature:: -196°~593°
Design & Manufacturing Standard:: API 600, BS 1414, ASME B16.34 Face To Face:: ASME B16.10, API 6D, BSEN 558
End Connection:: ASME B16.5, ASNE B16.47, BSEN 1092 Operation Method:: Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator

Slab cast gate valve, flat flexible wedge, OS&Y, bolted bonnet



Size NPS 2″~48″
Pressure Rating Class 150~1500
Material WCB,LCB,CF8,CF8M,CF3,CF3M
Design & Manufacturing Standard ASME B16.34,API 6D
Face to Face ASME B 16.10,BSEN 588,API 6D
End Connection ASME B16.5,ASME B16.47,BSEN 1092
Test Standard ISO 5208,API 6D,BSEN 12266
Structure Type Single Gate with/without through conduit,Double Gate with/without through conduit
Operation Method Manual,Worm Gear,Electric Actuator,Pneumatic Actuator





Applicable Standards:



DESIGN & MANUFACTURE CONFORM WITH:
API 6D/ISO 14313, ASME B16.34

CONNECTION DIMENSION CONFORMS WTIH:
ASME B16.5 DIN EN 1092

FIRE RESISTANCE DESIGN CONFORMS WITH:
API 607/ISO 10497

INSPECTION & TEST CONFORMS WITH:
API 6D, ISO 5208, API 598

MATERIAL CONFORMS WITH:
ISO 15156



Materials of parts



Body
Bonnet
Disc
Seat
Stem
Seal ring
Sealing surface material
O-ring
Bolt
Nut
Spring
Stem nut
Gasket
Packing
WCB/LCB/CF8M/CF8/CF3M/CF3/WC6/WC9/CD3MN
WCB/LCB/CF8M/CF8/CF3M/CF3/WC6/WC9/CD3MN
A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51
A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51
F6a/F304/F316/F304L/F316L/F51
PTFE/NYLON/PEEK/TEFLON
1~12 Trim material
VITON/NBR
B7M/B8M/L7M/B16M
2HM/8M/7M/4M
17-4PH/Inconel
C95200/D2/A536
Flexible graphite+304/Flexible graphite+316
Flexible graphite/PTFE


1. Valve seat adopts the structure of O-ring seals and pretightening float valve seat, the soft sealing inlays fluoroplastic, it provides the function of double sealing: fluoroplastic to metal and metal to metal. And at the same time, the fluoroplastic can remove the dirt of the gate disk.Product Features

2. Of the metal to metal sealing, there is a grease injection structure outside the valve, grease injects the sealing part through the seat, in this way achieves the aim of zero leakage.

3. Through conduit gate valve always coincide with the sealing surface,whether the disc is full open-or fullclosd; sealing surface to be protected from scouring by media dilectly, thereby extending the service life. In fulltime, smooth channel for the direct and flow resistance coefficient is extremely small, no pressure loss, leading to Pig.


BODY & BONNET
The design of the body and bonnet is calculated to achieve the most regular distribution of stress in all directions, as well as the minimum turbulence and resistance to flow. Valve bonnets are equipped with a backseat bushing. The yoke is integrally cast on Pressure Classes 150 and 300 up to 12” and up to 10” on Class 600 and higher ratings.

GATE
All gates are fully guided to the seats. As standard our valves are supplied with a solid flexible gate that has a tapered H cross-section. The flexible wedge is cast or machined with a circumferential groove to allow the seating surfaces to move independently and adjust to movement of the body seats. This design is beneficial where line loads or thermal expansion of the system is likely to distort the seat face in the valve. This design of gate is ideally suited for steam or other high temperature services and is especially useful to prevent sticking where valves are closed when hot and opened when cold.

SEAT RING
Seat rings are designed to greatly reduce and/or prevent any turbulence and avoid damages due to the corrosion. The seat rings are forged or rolled in one piece, and then seal welded and overlaid, if required. After welding and all required heat treating, the seat ring faces are machined, thoroughly cleaned and inspected before leaving for assembly.

STEM
The stem connection to the gate is a T-head design which is integral (without welding) with the stem. The accuracy in the dimensions and finishes assure a long life with a perfect tightness in the packing area, resulting in lower fugitive emissions. The stem-to-gate connection is designed to
prevent the turning or the disengagement of stem from the wedge while the valve is in service. Through calculations and extreme testing, the strength of the stem-to-gate connection has proven to exceed the strength of the stem at the root of its operating thread.

STEM PACKING
The stem packing is designed and arranged to ensure a maximum seal along the stem during operation or while at position,
thus allowing for a greater reduction in fugitive emissions. Our packings are NONASBESTOS types.
Kelite Valve can supply any style of packing required by our customer.

STUFFING BOX
The depth of the stuffing box allows for a sufficient amount of packing, which makes the stem seal. Our standard packing arrangement and stuffing box design meets <100 ppm fugitive emission requirements. If specified in the purchase order, lantern rings and/or grease injectors can be furnished.

PACKING GLAND
The packing gland design is a two-piece self-aligning type. The packing gland has a spherical head that rides within the spherical joint of the gland flange. The packing gland has a shoulder, which restricts the complete entry into the stuffing box bore. This particular design assures a straight compression of the packing as the gland eyebolts are being equally adjusted, without injuring the stem.

STEM NUT
The stem nut arrangement and design allows for the removal of the handwheel without allowing the stem and gate to drop into the closed position if the handwheel is removed while the valve is in the open position. Ball bearings are provided in the stem nut arrangement of Class 150 valves from NPS 14”, on Class 300 valves from NPS 12:, on Class 600 valves from NPS 6”, and on Classes 900-1500 valves from NPS 2”.

HANDWHEELS
Handwheels are designed for easy operation and a comfortable grip. Our valves are also available with gearing, motor actuators or cylinder actuators for the more demanding services.

BOLTS AND NUTS
For normal service conditions, ASTM A194 Class 2H and ASTM A193 Grade B7 nuts and stud bolts are furnished. If specified for high temperature service conditions, ASTM A194 Class 4 and ASTM A193 Grade B16 nuts and stud bolts are furnished. Standard bolting furnished for our stainless steel valves consists of ASTM A194 Class 8 and ASTM A193 Grade B8 nuts and stud bolts.
Kelite Valve can supply any bolting as required by the customer.
