Flanged Ends Floating Type Ball Valve , Electric Actuated Ball Valve

China Flanged Ends Floating Type Ball Valve , Electric Actuated Ball Valve supplier

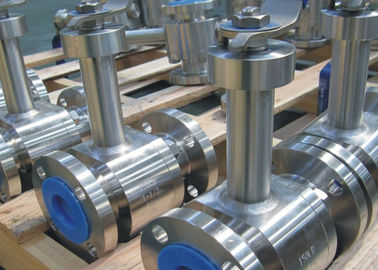

Large Image :  Flanged Ends Floating Type Ball Valve , Electric Actuated Ball Valve

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 1/2"-12", CL150-1500

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 30-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000-8000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 1/2"~12" Pressure Rating:: Class 150~1500
Material:: A105,LF2,F304, F316,F304L,F316L,F22,etc Design & Manufacturing Standard:: API 608,API 6D,BS 5351,ASME B16.34
Face To Face:: ASME B16.10, API 6D, BSEN 558 End Connection:: ASME B16.5, BSEN 1092
Test And Inspection:: ISO 5208, API 6D, BSEN 12266, API 598 Operation Method:: Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator

Floating type ball valve of 1/2"-12" CL150-1500 API 6D, 608 desgin



Size

NPS 1/2″~12″

Pressure Rating

Class 150~1500

Material

WCB,LCB,CF8,CF8M,CF3,CF3M,A105,LF2,F304,F316,

F304L,F316L

Design & Manufacturing Standard

API 608,API 6D,BS 5351,ASME B16.34

Face to Face

ASME B16.10,API 6D,BSEN 558

End Connection

ASME B16.5,BSEN 1092

Test and Inspection

ISO5208,API 6D,BSEN 12266

Operation Method

Manual,Worm Gear,Electric Actuator,Pneumatic Actuator





Design



Kelite steel ball valves are designed manufactured to provide maximum service life and dependability. All ball valves are full ported and meet the design requirements of American Petroleum Institute Standard API 608&API 6D British standard BS 5351 and generally conform to American Society of Mechanical engineers standard ASME B16.34 valves are available in a complete range of body/bonnet materials and trims.



Ranges of Materials



Standard body/bonnet materials include nine grades of carbon, low alloy and stainless steel, for special applications they can be supplied in other grades of alloy and stainless steel. There’s a full range of trim materials to match any service optional packing and gasket materials are available for a full range of service conditions.



Trim changes
End connection modifications
Packing and gasket change
Operator mounting
Handwheel extensions

Pressure equalizing
As or fd
Customer specified coatings
Weld end bore changes
Oxygen&chlorine cleaning & packaging

A)Operation
Extended lever for easy operation. Also available with gearing, motor actuators, pneumatic or hydraulic actuators for more difficult services



B)Body & Bonnet
Split or 3-piece,split body& bonnet for 12″ & small. Disassembles easily for repair or replacement of internal components.



C)BORE
Full bore or reduced bore. Full-bore design provides exceptional flow control.

D)End Connections
A choice of flanged RTJ flanged or buttwelding end for piping flexibility.



E)Packing
Std packing multiple v-teflon packing, combined with live loading,maintains packing compression under high-cycle and severe service applications.



F)BPS
Blow-out proof stem, a pressure-safe stem shoulder design that protects against failure under excess pressure.

G)AS
Anti statics. A metallic contact is always granted between ball and stem /body to discharge eventual statics build-up during service.



H)FS
Fire safe designed to API607 or BS 6755 to grant their operation suitability in case of fire. Secondary metal-to metal seal acts as backup if primary seal is destroyed by fire. Valves ordered for compliance with API 607 will be provided with graphite packingand gaskets.



Applicable Standards:



●STEEL BALL VALVES API 608/API 6D
●STEEL BALL VALVES ISO 14313
●FIRE SAFE,API 607
●ANTI STATIC,API 608
●STEEL VALVES,ASME B16.34
●FACE TO FACE ASME B16.10
●END FLANGES,ASME B16.5
●BUTTWELDING ENDS ASME B16.25
●INSPECTION AND TEST, API 598/ API 6D



Design descriptions:



FULL PORT DESIGN
●BG.BOLTED BONNET.SPLIT BODY
●FLOATING BALL TYPE
●BLOW-OUT PROOF STEM
●FIRE DURABLE CONSTRUCTION
●ANTI STATIC DEVICE
●STOPPER DEVICE
●ISO 5211 MOUNTING PAD
●FLANGED OR BUTTWELDING ENDS
●AVAILABLE WITH WG OPERATOR
