High Temperature Ball Valves Casting Body Forging Body PTFE Gasket

China High Temperature Ball Valves Casting Body Forging Body PTFE Gasket supplier

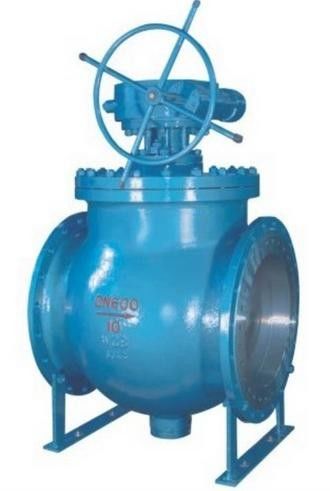

Large Image :  High Temperature Ball Valves Casting Body Forging Body PTFE Gasket

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 2"-24",CL150-2500,API 2000-15000

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 30-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000-5000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 2"~24" Pressure Rating:: Class 150~2500,API 2000-15000
Material:: WCB,LCC,LCB, Etc Design & Manufacturing Standard:: API 6A, API 6D, API 6DSS, BS 5351, ASME B16.34
Face To Face:: ASME B16.10, API 6D End Connection:: ASME B16.5, ASME B16.47, ASME B16.25
Test And Inspection:: ISO 5208, API 6D, API598 Operation Method:: Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator

Top entry trunnion ball valve of 2"-24" CL150-2500 with casting or forging body



Size NPS 2″~24
Pressure Rating Class 150~2500
Material WCB,LCB,CF8,CF8M,CF3,CF3M,A105,LF2,F304,F316,F304L,F316L
Design & Manufacturing Standard API 608,API 6D,BS 5351,ASME B 16.34
Face to Face ASME B 16.10,API 6D
End Connection ASME B16.5,ASME B 16.47,ASME B 16.25
Test and Inspection ISO5208,API 6D
Operation Method Manual,Worm Gear,Electric Actuator,Pneumatic Actuator

Applicable Standards:

DESIGN & MANUFACTURE CONFORM WITH: API 6D/ISO 14313,ASME B16.34
CONNECTION DIMENSION CONFORMS WTIH:ASME B16.5,DN EN 1092
FIRE RESISTANCE DESIGN CONFORMS WITH:API 607/ISO 10497
INSPECTION & TEST CONFORMS WITH:API 6D,ISO 5208,API 598
MATERIAL CONFORMS WITH:ISO 15156



Features and Application:


This product is a new type top entry combination ball valve,the seat can be installed and move around the body. Through the thread, the outer margin of the seat connected to the retainer ring. There is spring on the support cover, which installed on the valve body, and the retainer ring can compress spring. The fabrication holes are on the outer margin of the seat and the retainer ring. This new type product adopts total body design, the compensation can be automatically, the possibility of leakage is small, safety in use, vibrate resistance, and double seal. The ball is installed from the top part, so can finsish the maintenance without removing the pipe, it is very convenient.



Materials of parts



Body
Lid
Ball
Seat
Stem
Seat ring
O-ring
Bolt
Support cover
Spring
Bearing
Gasket
WCB/LCB/CF8M/CF8/CF3M/CF3/WC6/WC9/CD3MN
WCB/LCB/CF8M/CF8/CF3M/CF3/WC6/WC9/CD3MN
A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51
A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51
A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51
PTFE/MYLON/PEEK/TEFLON
VITON/NBR
B7M/B8M/L7M/B16M
A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51
17-4PH/17-7PH/Inconel
304+PTFE/316+PTFE
Flexible graphite+PTFE
