Kelite Group is a global manufacturer of ball valve and GGC valves, we also produce OEM products and provide machined components(body,end caps, ball, stem, bearing plate,etc) to overseas.
Welcome your visit and look forward to become your friends.
Kelite Group is a global manufacturer of ball valve and GGC valves, we also produce OEM products and provide machined components(body,end caps, ball, stem, bearing plate,etc) to overseas.
Welcome your visit and look forward to become your friends.
Product Details:
Payment & Shipping Terms:
|
| Size:: | NPS 2"~24" | Pressure Rating:: | Class 150~1500 |
|---|---|---|---|
| Material:: | WCB, LCC,LCB, 4A, 5A Etc | Design & Manufacturing Standard:: | API 6A, API 6D, API 6DSS, BS 5351, ASME B16.34 |
| Face To Face:: | ASME B16.10, API 6D | End Connection:: | ASME B16.5, ASME B16.47, ASME B16.25 |
| Test And Inspection:: | ISO 5208, API 6D, API598 | Operation Method:: | Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator |
| High Light: | trunnion type ball valve,top entry ball valve |
||

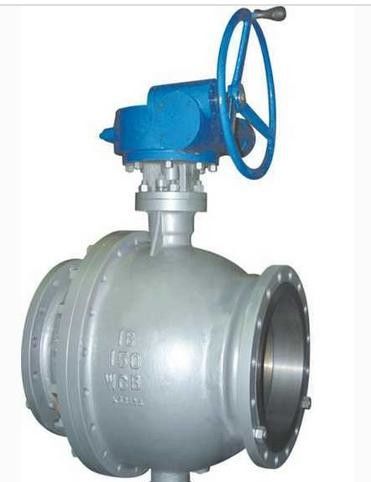

Casting trunnion ball valve of 2"-24" CL150-1500 casted Carbon steel, Stainless steel
The KELITE Cast Trunnion Mounted Ball Valve’s split body construction complies with API 6D, ASME B16.34, API 608, API 607 and other relevant ASTM specifications. With a variety of material selections available as well as ISO 5211 complaint direct mount actuator pad, the Cast Trunnion Ball Valve can be customized and automated to suit a complete range of oil and gas applications
Casting split body, full bore/reduced bore, trunnion mounted, double block and bleed, anti-blow out stem, anti-static device, fire-safe certified to API-607/6FA, spring loaded Seats, sealant injection, NACE MR-01-75, RTFE, Delrin, NYLON&DEVLON seat inserts, designed and tested according to ASME B16.34, BS5351 and API-6D.
Design Feature
Full port or reduce port
Fire safe certified
Double block & bleed
Emergency sealant injection
Cavity pressure self relief
Blowout-proof stem
Antic-static
Optional double piston design
|
|
|
|
Material: |
WCB, LCB, CF8, CF8M, CF3, CF3M, etc |
|
Design & Manufacturing Standard: |
API 608, API 6D, BS 5351, ASME B16.34 |
|
Face to Face: |
ASME B16.10, API 6D, BSEN 558 |
|
End Connection: |
ASME B16.5, BSEN 1092 |
|
Test and Inspection: |
ISO 5208, API 6D, BSEN 12266 |
|
Operation Method: |
Manual ,Worm Gear, Electric Actuator, |
