Forging Wafer Ball Valve Large Diameter Steel Flanges High Flow Capacity

China Forging Wafer Ball Valve Large Diameter Steel Flanges High Flow Capacity supplier

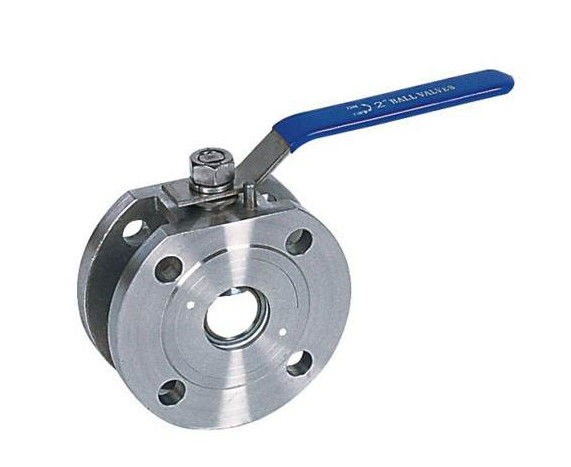

Large Image :  Forging Wafer Ball Valve Large Diameter Steel Flanges High Flow Capacity

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 1/2"-10", CL150-600

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 10-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000-8000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 1/2"~10" Pressure Rating:: Class 150~600
Material:: A105,LF2,F304, F316,F304L,F316L,F22,etc Design & Manufacturing Standard:: API 608,API 6D,BS 5351,ASME B16.34
Face To Face:: ASME B16.10, API 6D, BSEN 558 End Connection:: ASME B16.5, BSEN 1092
Test And Inspection:: ISO 5208, API 6D, BSEN 12266, API 598 Operation Method:: Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator

Forging wafer floating type ball valve of 1/2"-10" CL150-600 API 6D, 608 desgin



PRODUCT RANGE

Class 150 from ½'' to 10''
Class 300 from ½'' to 8''
Class 600 from 1/2" to 4"

MATERIALS
BODY: Carbon steel, Stainless steel, Low temperature carbon steel, Duplex, Special Alloys,... Other materials under request
SOFT SEATS : PTFE, RPTFE, PEEK, DEVLON, NYLON,... Other materials under request
METAL SEAT:Tungsten Carbide(TC), Stellited
, Ni60...Other materials under request.
TRIM: A105+EP,304,316, 410, MONEL,... Other materials under request

DESIGN STANDARDS
ASME Standards:
B1.20.1 Pipe Threads,General Purpose(Inch)
B16.10 Face-to-Face and End-to-End Dimensions of Valves
B16.25 Buttwelding Ends
B16.11 Forged Fittings, Socket-Welding and Threaded
B16.5 Flanged Fittings and Pipe Flanges
B16.47 Large Diameter Steel Flanges
API Standards:
6D Specifications for Pipeline valves
598 Valve Inspection and Testing
607 Fire test for soft-seated quarter-turn valves
6FA Specification for Fire Test for Valves
MSS Standards:
SP-55 Quality Standard for Steel Castings for Valves,Flanges,and Fittings and Other Piping Components-Visual Method for Evaluation of Surface Irregularities
SP-54 Quality Standard for Steel Castings for Valves,Flanges,and Fittings and Other Piping Components-Radiographic Examination Method
SP-53 Quality Standard for Steel Castings for Valves,Flanges,and Fittings and Other Piping Components-Magnetic Particle Examination Method


DESIGN FEATURE

One piece body, full bore. Fire-Safe certified, floating ball, blow out proof stem, wafer connections.
Non-removable antistatic devices assure electric continuity between ball and body through the stem.
All wetted component materials and bolting meet NACE MR.01.75 latest edition as standard.
Cavity pressure relief hole avoids overpressure in the cavity with the valve in open position.
Asbestos free.



APPLICATION

Refinery
Chemical
Petrochemical
Power plant
Gas



TECHNICAL PAREMETERS:

Product description Forging wafer type floating ball valve of 1/2"-10" CL150-600 API 6D, 608 desgin
Model Forging wafer type floating ball valve
Nominal diameter NPS 1/2~NPS 10
Operating temperature -46℃~121℃
Operating pressure CLASS 150~CLASS 600
Material A105,LF2,F304,CF8M,F316, etc.
Design standard API 608,ISO 17292,BS 5351
Structural length ASME B16.10
Connecting end ASME B16.5,ASME B16.25
Test standard API 598
Operation method/td> Handle, worm, motor-drive unit, pneumatic drive unit
Application fields Water, petroleum and natural gas
Other remarks 1 A locking device is provided to prevent misoperation of valve.
Other remarks 2 Valve stem flyout prevention structure design, to prevent accident due to flyout of valve stem caused by abnormal pressurization in the chamber
Other remarks 3 Fireproof and antistatic design
Other remarks 4 Full bore of valve convenient for pigging, of small flow resistance and high flow capacity
