API 6D forging trunnion ball valve of 2"-56" CL150-2500 OEM Service

China API 6D forging trunnion ball valve of 2"-56" CL150-2500 OEM Service supplier
API 6D forging trunnion ball valve of 2"-56" CL150-2500 OEM Service supplier API 6D forging trunnion ball valve of 2"-56" CL150-2500 OEM Service supplier API 6D forging trunnion ball valve of 2"-56" CL150-2500 OEM Service supplier API 6D forging trunnion ball valve of 2"-56" CL150-2500 OEM Service supplier

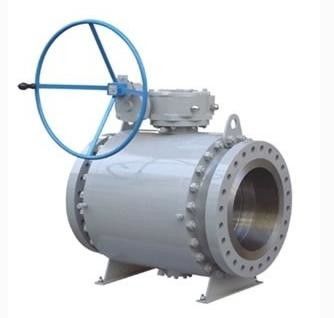

Large Image :  API 6D forging trunnion ball valve of 2"-56" CL150-2500 OEM Service

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 2"-56",CL150-2500,API 2000-15000

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 30-70days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000-5000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 2"~56" Pressure Rating:: Class 150~2500,API 2000-15000
Material:: A105, LF2, F304, F316,F304L, F316L, F51 Etc Design & Manufacturing Standard:: API 6A, API 6D, API 6DSS, BS 5351, ASME B16.34
Face To Face:: ASME B16.10, API 6D End Connection:: ASME B16.5, ASME B16.47, ASME B16.25
Test And Inspection:: ISO 5208, API 6D, API598 Operation Method:: Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator
High Light:

trunnion type ball valve

,

top entry ball valve

API 6D forging trunnion ball valve of 2"-56" CL150-2500 CS and SS ball valve



Forging split body, full bore/reduced bore, trunnion mounted, double block and bleed, single or double piston effect, anti-blow out stem, anti-static device, fire-safe certified to API-607/6FA/ISO 10497, spring loaded Seats, sealant injection, NACE MR-01-75, NYLON, DEVLON&PEEK seat inserts, designed and tested according to ASME B16.34, BS5351 and API-6D,API-6DSS, API 6A.



Service Type:
• Standard Temperature: -29°C to 220°C / -20°F to 428°F
• Low Temperature: -46°C to 150°C / -50°F to 302°F
• Cryogenic Temperature: -50°C to -196°C / -58°F to -320°F
• Subsea (Shallow & Deep Water)
• Underground
• High Temperature: Above 220°C / 428°F



  • KELITE Side Entry ball valves are used in pipelines, pumping and compression stations, offshore, onshore, subsea and cryogenic as well as abrasive and high temp applications.
  • The extensive size range and pressure class are available in a variety of materials including Carbon, Alloy & Stainless steel suitable for general to severe service conditions.
  • The KELITE trunnion mounted ball valves are available with Double Block & Bleed independent of the seat type.
  • Single piston effect (SPE) is the standard feature for the seat rings of the KELITE trunnion mounted ball valves.
    On a SPE seat ring: The pressure acting on the upstream side of the seat ring generates a force which push the seat towards the ball.The pressure acting on the downstream side of the seat ring generates a force which pull the seat ring away from the ball.
    Any overpressure which may be generated by the thermal expansion of the fluid trapped in the body cavity with the ball in fully closed position, will be automatically discharged in the line on the lower pressure side.
  • Double piston effect (DPE) is a standard feature for the seat rings of the KELITE trunnion mounted ball valves & recommended for welded body valves. On a DPE seat ring, both the pressure acting on the upstream side of the seat ring and the pressure acting on the down stream side of the seat ring, generate a force which push the seat towards the ball. With this type of seat ring, the eventual overpressure which may be generated by the thermal expansion of the fluid trapped in the body cavity with the ball in fully closed position, can be discharged by the use of an external safety relief device. The Double Piston Effect grants a double sealing feature, if the upstream seat ring is damaged, the down stream seat grant the sealing feature of the valve.

      Technical parameters and characteristics:



Product description Side-mounted trunnion ball valve
Model Forging trunnion ball valve
Nominal diameter NPS 2~NPS 56
Operating temperature -196℃~220℃
Operating pressure CLASS 150~CLASS 2500
Material A105,LF2,F304,F316, etc.
Design standard API 6D,ISO 17292
Structural length ASME B16.10
Connecting end ASME B16.5,ASME B16.25
Test standard API 598,API 6D
Operation method Handle, worm, motor-drive unit, pneumatic drive unit
Application fields Water, petroleum and natural gas
Other remarks 1 A locking device is provided to prevent misoperation of valve.
Other remarks 2 Valve stem flyout prevention structure design, to prevent accident due to flyout of valve stem caused by abnormal pressurization in the chamber
Other remarks 3 Fireproof and antistatic design
Other remarks 4 The valve stem and the valve seat are equipped with an injection system.
Other remarks 5 DBB (double block and bleed) function
Other remarks 6 Full bore of valve convenient for pigging, of small flow resistance and high flow capacity


 API 6D forging trunnion ball valve of 2"-56" CL150-2500 OEM Service  API 6D forging trunnion ball valve of 2"-56" CL150-2500 OEM Service
