Anti Static Stainless Steel Ball Float Valve Blow Out Proof PTFE Seat Lever Operation

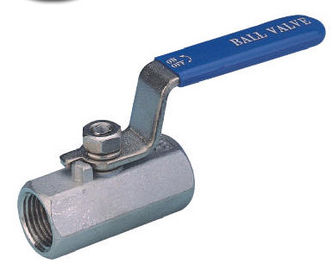

Large Image : Anti Static Stainless Steel Ball Float Valve Blow Out Proof PTFE Seat Lever Operation

Product Details:

Place of Origin:	China
Brand Name:	Kelite Valve
Certification:	ISO, CE,API
Model Number:	Reduced port, 1/4"~2" (DN8~DN50),PN63

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	Plywood packing or fumigation packing
Delivery Time:	10-80days
Supply Ability:	3000-8000PCS per month

Contact Now

Detailed Product Description

Size:	1/4"~2" (DN8~DN50)	Pressure:	PN63
Material:	Steel	Certifcate:	CE, API,ISO
Operation:	Lever
High Light:	stainless steel ball float valve , fire safe ball valve

BALL VALVE SCREWED END BLOW OUT PROOF

Specifications:
1.PTFE Seat
2.Casting Material Body:CF8M,WCB
3.Technical Data:

ITEM	PARTS	MATERIAL
1	BODY	ASTM A351-CF8M	ASTM A216-WCB
2	RETAINER	ASTM A351-CF8M	ASTM A216-WCB
3	BALL	ASTM A351-CF8M
4	SEAT	PTFE / RTFE
5	SEAL	PTFE
6	STEM	ASTM A276-316
7	FLAT WASHER	AISI 304
8	SPRING WASHER
9	STEM NUT
10	THRUST WASHER	PTFE
11	PACKING	PTFE
12	HANDLE	STAINLESS STEEL
13	HANDLE SLEEVE	PVC

DN	d	L	H	H1	W	S	Weight(kg)
8	5	39	35.5	17	62.7	3	0.1
10	7	44	37.1	21.4	72.9	4	0.1
15	9	56.5	42.4	26.1	88.2	5	0.2
20	12.5	59	45.9	28.8	88.2	5	0.3
25	15	71	48.5	36.5	106	6	0.5
32	20	78	54	40.5	106	6	0.8
40	25	83	65.5	46.5	153	8	0.9
50	32	100	71.5	51	153	8	1.5

unit:mm

NPS	d	L	H	H1	W	S	Weight(lb)
1/4"	0.2	1.54	1.4	0.67	2.47	0.12	0.2
3/8"	0.28	1.73	1.46	0.84	2.87	0.16	0.2
1/2"	0.35	2.22	1.67	1.03	3.47	0.2	0.4
3/4"	0.49	2.32	1.81	1.13	3.47	0.2	0.6
1"	0.59	2.8	1.91	1.44	4.17	0.24	1.1
1-1/4"	0.79	3.07	2.13	1.59	4.17	0.24	1.7
1-1/2"	0.98	3.27	2.58	1.83	6.02	0.31	2
2"	1.26	3.94	2.81	2.01	6.02	0.31	3.4

unit:in

Select us :

Design team: With professional design staff, Sample order is always welcomed
Professional factory: Specializing in manufacturing valves for many years, competitive price with good quality, the deadline usually is 30-45 days
Sample: We can offer sample in 3 days, but the shipment charge is usually beared by customerside, the fee will be deducted from agreed offical order.
Quick response to your needs: We will answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.
