Adjustable Pneumatic Ball Valve / Segmented Ball Valve Stainless Steel Material

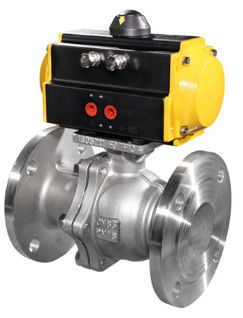

Large Image : Adjustable Pneumatic Ball Valve / Segmented Ball Valve Stainless Steel Material

Product Details:

Place of Origin:	China
Brand Name:	Kelite Valve
Certification:	ISO, CE,API
Model Number:	1"~6",PN10 PN16 PN25 PN40

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	Plywood packing or fumigation packing
Delivery Time:	10-80days
Supply Ability:	3000-8000PCS per month

Contact Now

Detailed Product Description

Size:	1"~6"	Pressure:	PN10 PN16 PN25 PN40
Material:	Stainless Steel	Certifcate:	CE, API,ISO
Operation:	Handle
High Light:	stainless steel ball float valve , fire safe ball valve

Stainless Steel Flanged V Type Ball Valve Adjustable Pneumatic Ball Valve

SEGMENT BALL VALVE FLANGE 2WAY

Specification:

1.Material:Stainless Steel, WCB

2.Temperature of Media:Medium Temperature, t<80°C

3.Pressure:Medium Pressure, PN1.6 to 6.4MPa, 232 to 928PSI

4.Power:Pneumatic

5.Media:Water, Air, Gas, Oil, Liquid, Steam, Air, Gas, Oil, Liquid, Steam

6.Port Size:1/2"-6", DN15-DN150

7.Structure:Ball

8.Standard or Nonstandard:Standard

9.Acting Mode:Double Acting, Single Acting (Spring Return)

10.Air Supply Pressure:2.5 to 8bar

11.Sealing Material:NBR, EPDM, FKM (VITON), PTFE (TEFLON)

12.End Connection:Female Screw Thread, Flange End

Technical Data:

Item	Penumatic 2 way Flange Ball Valve
Applicable Standards	GB, DIN, ANSI, ASME, JIS, API
Size Range	DN15 to DN150, 1/2" to 6"
Acting Mode	Double Acting, Sping Return (Single Acting) are Available
Air Supply Pressure	2.5 to 8bar
Operating Pressure	Low Pressure, 1.0 to 1.6MPa (145 to 232PSI)
Output Torque	14 to 1170Nm
Lifespan	1,000,000 (1 Million) Times
Angle of Rotation	90° ±4°
Shell Material	Aluminum Alloy Extruded
Body Material	Carbon steel,stainless steel
Sealing Material	NBR, EPDM, FKM (VITON), PTFE (TEFLON)
Core Material	Stainless Steel
Structure	Midline
End Connection	Wafer, Flange End
Applicable Media	Control of Water, Air, Gas, Oil, Liquid, Steam
Temp. of Media	Range from -10 to +80°C (14 to 176°F) with NBR Sealing
Ambient Temp.	Standard Type: -20 to +80°C (-4 to 176°F)
Optional Accessories	Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
Application	Food & Beverage, Refining, Desalination, Petrochemical, Chemical, Pharmaceutical, Textile, Pulp & Paper, Mining, Marine and Power Industries
Lubrication	There is no need for lubrication for standard type under normal operating conditions. Special lubricants should be used under low or high temperature operating conditions
