Nickel Plating Brass Ball Valve / Threaded Ball Valve CE Certifcation

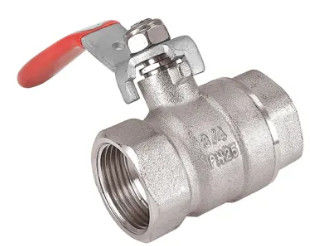

Large Image : Nickel Plating Brass Ball Valve / Threaded Ball Valve CE Certifcation

Product Details:

Place of Origin:	China
Brand Name:	Kelite Valve
Certification:	ISO, CE
Model Number:	1/2" to 2",ANSI CLASS 150-900

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	Plywood packing or fumigation packing
Delivery Time:	10-80days
Supply Ability:	3000-8000PCS per month

Contact Now

Detailed Product Description

Size:	1/2" To 2"	Pressure:	ANSI CLASS 150-900
Material:	Alloy	Certifcate:	CE, API,ISO
Operation:	Handle
High Light:	stainless steel ball float valve , fire safe ball valve

Nickel Plating Brass Ball Valve ISO Standard

Specifications:

Full flow Female BSP x Female BSP brass ball valves (brass ball & stem) fitted with Iron lever handle are used for a variety of applications including oil & petroleum, and water. They are steam rated with PTFE stem packing. Pressure ratings are 25 bar/362.5 psi). EN13828 CE ACS(1101) approval. Ball & stem nickel-then-chrome plated for smooth operation.

NO.	Part Name	Material
1	Body	Brass
2	Bonnet	Brass
3	Seat	PTFE
4	Ball	Brass
5	Stem	Brass
6	Gland	PTFE
7	Pressing Nut	Brass
8	Handle	Iron
9	Nut	Stainless Steel

Main Dimensions:

Dimensions

Spec	D	A	H	L
1/4"	8	84	44	40
3/8"	10	84	46	44
1/2"	13.5	84	48	47
3/4"	18.5	84	52	54
1"	23	112	67	65
11/4"	29	135	76	73
11/2"	37	135	81	81
2"	47	157	99	98

Select us :

Design team: With professional design staff, Sample order is always welcomed
Professional factory: Specializing in manufacturing valves for many years, competitive price with good quality, the deadline usually is 30-45 days
Sample: We can offer sample in 3 days, but the shipment charge is usually beared by customerside, the fee will be deducted from agreed offical order.
Quick response to your needs: We will answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.
