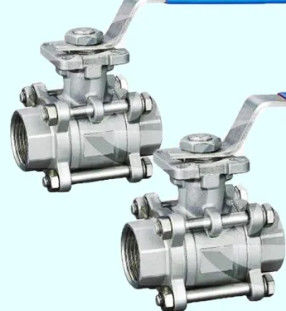

Female Threaded Manual Ball Valve Stainless Steel 304 With ISO Mounting Pad

Large Image : Female Threaded Manual Ball Valve Stainless Steel 304 With ISO Mounting Pad

Product Details:

Place of Origin:	China
Brand Name:	Kelite Valve
Certification:	ISO, CE
Model Number:	1/2" to 2",ANSI CLASS 150-900

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	Plywood packing or fumigation packing
Delivery Time:	10-80days
Supply Ability:	3000-8000PCS per month

Contact Now

Detailed Product Description

Size:	1/2" To 2"	Pressure:	ANSI CLASS 150-900
Material:	Cast Stainless Steel	Certifcate:	CE, API,ISO
Operation:	Handle
High Light:	stainless steel ball float valve , fire safe ball valve

3PC Stainless Steel Ball Valve with ISO Mounting Pad

Specifications:

1	CAP	CF8M/CF8/WCB	8	STEM	SS316/SS304SS
2	BOLT WASHER	SS304/SS/SS316	9	THRUST WASHER	PTFE
3	HEX NUT	SS304/SS/SS316	10	PACKING	PTFE
4	BOLT	SS304/SS/SS316	11	GLAND	SS304/SS
5	BODY	CF8M/CF8/WCB	12	SPRING WASHER	SS304/SS
6	SEAT	PTFE	14	STEM NUT	SS304/SS
7	BALL	SS316/SS304/SS	15	BLOCK ONLY RETREAT	SS

Main Dimensions:

DN	G	D	L	W	H1	H2	E1	E2	Ra	Rb
6	1/4"	6	60	9	9	40	R3	R3	18	21
10	3/8"	10	60	9	9	40	R3	R3	18	21
15	1/2"	14	75	9	9	40	R3	R3	18	21
20	3/4"	19	80	9	9	45	R3	R3	18	21
25	1"	24	90	11	11	55	R3	R3.5	21	25
32	11/4"	32	110	11	11	60	R3	R3.5	21	25
40	11/2"	38	120	14	14	75	R3.5	R4.5	25	35
50	2"	50	140	14	14	83	R3.5	R4.5	25	35
65	21/2"	65	185	17	17	108	R3.5	R4.5	25	35
80	3"	80	205	17	17	116	R4.5	R5.5	35	51
100	4"	98	240	22	22	130	R4.5	R5.5	35	51
