Product Details:
Payment & Shipping Terms:
|
Size: | 1/4''~2'' ( DN8~DN50) | Pressure: | 1000PSI |
---|---|---|---|
Material: | 304/316/304L/316L Etc | Seal: | PTFE, RPTFE, PPL |
End Connection: | NPT/BSP/BSPT | Operation: | Lever |
Working Temp.: | -20~300ºC | T& I: | API 598 |
High Light: | stainless steel ball float valve,fire safe ball valve |

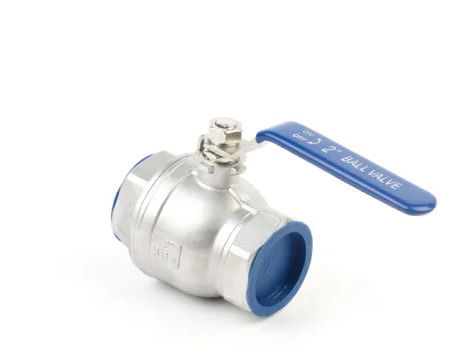

Full Bore 2PC Standard Stainless Steel Threaded Ball Valve
Description:
1. Casting body
2. Adjustable stem packing
3. Blow-out proof stem,
4. Locking device (option)
5. Lever Operated
Specification:
NO.1 | NAME | MATERIAL | Q'TY |
1 | HANDLE COVER | PLASTIC | 1 |
2 | BODY | CF8M/CF8 | 1 |
3 | BALL SEAT | PTFE | 2 |
4 | BALL | CF8M | 1 |
5 | CAP | CF8M/CF8 | 1 |
6 | JOINT GASKET | PTFE | 1 |
7 | THRUST WASHER | PTFE | 1 |
8 | STEM PACKING | PTFE | 1 |
9 | GLAND NUT | 304 | 1 |
10 | SPRING WASHER | 304 | 1 |
11 | STEM NUT | 304 | 1 |
12 | STEM | 316 | 1 |
13 | LOCK DEVICE | 304 | 1 |
14 | HANDLE | 304 | 1 |
Advantage:
1, We offer the custom made valves, as per customer requirements
2, OEM with your own logo and brand
3, Exported to all over of the world
4, Quality Guarantee, available with API,CE,SGS and ISO certifications
