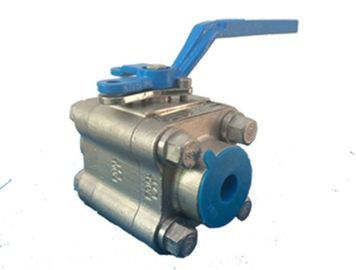

3 Piece Position Plate Type High Pressure Ball Valve CL150 - 2500 Pressure

3 Piece Position Plate Type High Pressure Ball Valve CL150 - 2500 Pressure
3 Piece Position Plate Type High Pressure Ball Valve CL150 - 2500 Pressure

Large Image :  3 Piece Position Plate Type High Pressure Ball Valve CL150 - 2500 Pressure

Product Details:
Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE
Model Number: 1/2"~2",CL150~2500
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 10-80days
Supply Ability: 3000-8000PCS per month
Detailed Product Description
Size: NPS 1/2"~2" Pressure: CL150~2500
Material: A105,LF2,F304 (L) Etc D & M Standard: API6D, ASME B16.34
Face To Face: ASME B16.10, API 6D End Connection: ASME B16.5
T& I: API 6D, API 598 Operation: Lever
High Light:

stainless steel ball float valve

,

fire safe ball valve



Full Bore Forged Steel Ball Valve CL150 Pressure



Description:



Three piece structure ball valves   with different materials for seats ,gaskets and packing ,suitable for use on different working condition..

  • Forged stell ball valve conform to API598/API6D.
  • Mark Comform to MSS-SP-25



Standard:

  1. Design and manufacture conform to :BS5351
  2. Connection ends to :ANSI B16.11;JB/T1751& ANSI B1.20.1:JB/T7306 &ANSI16.25;JB/T12224 &ANSI B16.5;JB79
  3. Features: Bolted Bonnet
  4. Material according to ANSI/ASTM.
  5.  Main materials: A105;LF2;F5;F11;F22;304(L);316(L);F347:F321:F51;Monel;Alloy etc
No.  Part Name Material
1 Seat RPTFE & Peek
2 Gasket PTFE
3 Pin 25/304
4 Gland 410/304(L)/316(L) /F51 etc
5 Flat Nut 8/8M
6 Packing PTFE
7 Bolt B7/B8/B8M
8 Nut 2H/8/8M
9 O-ring  Vition
10 Back seat gasket  RPTFE &PEEK
11 Wrench ANSI 1025
12 Spring  65Mn/304
13 Washer 65Mn/304
14 Anti-static spring  304/316L


Advantage:


1, We offer the custom made valves, as per customer requirements
2, OEM with your own logo and brand
3, Exported to all over of the world
4, Quality Guarantee, available with  API,CE,SGS and ISO certifications




Select us :

  • Design team: With professional design staff,  Sample order is always welcomed
  • Professional factory: Specializing in manufacturing valves for many years, competitive price with good quality, the deadline usually is 30-45 days
  • Sample: We can offer sample in 3 days, but the shipment charge  is usually beared by customerside, the fee will be deducted from agreed offical order.
  • Quick response to your needs: We will  answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.
