Standard Stainless Steel Floating Type Ball Valve , 3 Way Ball Valve

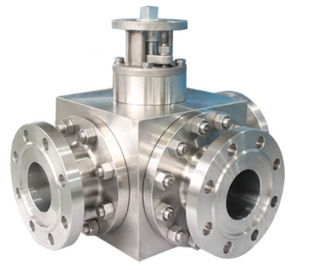

Large Image : Standard Stainless Steel Floating Type Ball Valve , 3 Way Ball Valve

Product Details:

Place of Origin:	China
Brand Name:	Kelite Valve
Certification:	API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number:	1/2"-12", CL150-600

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	Plywood packing or fumigation packing
Delivery Time:	20-40days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000-5000PCS per month

Contact Now

Detailed Product Description

Size::	NPS 1/2"~12"	Pressure Rating::	Class 150~600
Material::	A105,LF2, 316 ETC	Design Standard::	API 608, API 6D, BS 5351, ASME B16.34
Face To Face::	ASME B16.10, API 6D, BSEN 558	End Connection::	ASME B16.5, BSEN 1092
High Light:	stainless steel ball float valve , fire safe ball valve

Three way floating forging type ball valve of 1/2"-12" CL150-600

Stainless steel 3-way ball valve shape: T-shape-120 ° Size: DN80 (full bore) Process connection:falnges PN40 Housing / Ball: Stainless steel A182 F316 Ball bore: L-shape Seals:PTFE Operation:bare shaft.

Anti Blow-out Proof Design

Kelite ball valve adopts the design of stepped shaft with the gland. It is effectively that prevent the stem blows out from the top.

Three way ball's structure is simple and suitable for only 3 way ball valve. This is L type three way ball, another is T type.

Technical Specification

Design Basis	GB	API	ASME
Design Standard	GB/T 12237 /B/T 19672	API 608 /API 6D	ASME B16.34
Face To Face	GB/T 12221/ GB/T 19672	ASME B 16.10 / API 6D	ASME B16.10
Connection End	GB/T 9113	/	ASME B 16.5/MSS SP-44/ASME B 16.47
Material	NACE MR0175
Test & Inspection	JB/T 9092 GB/T19672	API598/API6D	ASME B16.34

Products Characteristics

1. Valve seat can be designed to four-side floating ball and trunnion ball with smooth fluid state and reliable seal

2. Blow-out proof stem: Prevent the stem blowing out caused by the abnormal increase of pressure.

3. The structure may be designed into side installing type, top installing type, and bidirectional seal, which ensures the flow direction won't be mixed.

4. Anti-static Design: This structure ensures the safe use under the explosive working conditions.

5. Two position(On and Off ) lock up design.

3-Way Ball Valve

Material for Main Parts

Parts Name	Material
Body	A105, F304/L, F316/L, LF2, etc
Ball	25+ENP, A105+ENP, 304, 316, LF2+ENP, etc.
Stem	17-4PH,304,316, 1Cr13, 2Cr13, 410,420,LF2 etc.
Seat	PTFE, RPTFE, DEVLON, PEEK, 304+ni55, 316+ni55, LF2+NI55, 304+STL,316+STL
O-Ring	NBR,Viton,etc.
