Casting Floating Type Ball Valve ISO 5211 Top Flange Fire Safe Design

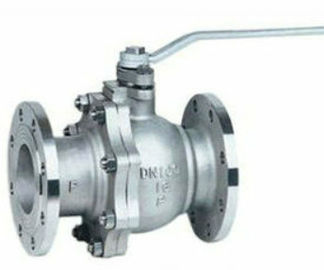

Large Image : Casting Floating Type Ball Valve ISO 5211 Top Flange Fire Safe Design

Product Details:

Place of Origin:	China
Brand Name:	Kelite Valve
Certification:	API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number:	1/2"-10", CL150-2500

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	Plywood packing or fumigation packing
Delivery Time:	30-70days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000-5000PCS per month

Contact Now

Detailed Product Description

Size::	NPS 1/2"~10"	Pressure Rating::	Class 150~2500
Material::	WCB, LCB, CF8,A105,LF2, CF8M, CF3,CF3M,F51	Design Standard::	API 6D, API 608, BS 5351, ASME B16.34
Face To Face::	ASME B16.10, API 6D, BSEN 558	End Connection::	ASME B16.5, BSEN 1092
High Light:	float operated ball valve , fire safe ball valve

Casting or forging floating type ball valve of 1/2"-10" CL150-2500

Floating Ball Valve

Split body, full bore/reduced bore, floating ball, fire-safe certified to API-607/6FA, anti-blow out stem, cavity relieving seats, anti-static device, RTFE, Delrin, NYLON&DEVLON seat inserts. Floating ball valves are designed, constructed and tested according to the most recent international standards, such as API, ASME, BS, DIN, etc.

Kelite floating valves are widely used in pipeline controlling system such as flow rate control, liquid position control and temperature control system for achieving conventional on-off, emergency shut off and quick closing function to control the working flow. The leakage rate of the soft seated control valves can reach rate VI or zero leakage. Top flange is designed per ISO5211 for easy amount various type of actuator.

Kelite floating ball valves include:
Cast steel floating ball valve (1 pc or 2 pc)
Forged steel floating ball valve(2 pc or 3 pc)

Full port or reduce port
Fire safe design
Blowout-proof stem
Anti-static
Low emission control
ALL with locking device
ISO 5211 top flange
Optional various actuator

Production Range

Cast Steel Floating Ball Valve (1PC or 2 PC)

Size	:	1/2~10(DN15~DN250)
Rating	:	150~300LB(PN16~PN40)
Body Materials	:	Cast Carbon Steel, Stainless Steel, Duplex Steel
Trim	:	Carbon Steel, Stainless Steel, Duplex Steel
Operation	:	Manual, Electric, Pneumatic, Hydraulic

Forged Steel Floating Ball Valve (2PC or 3 PC)

Size	:	1/2~4(DN15~DN100)
Rating	:	150~2500LB(PN16~PN420)
Body Materials	:	Forged Carbon Steel, Stainless Steel, Duplex Steel
Trim	:	Carbon Steel, Stainless Steel, Duplex Steel
Operation	:	Electric, Pneumatic, Hydraulic,
