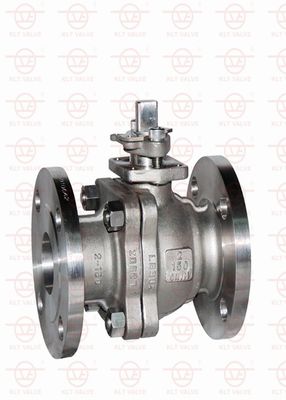

2 Piece Reduced Bore Ball Valve Anti - Blow Out Stem In Water Oil Gas

Two piece floating type ball valve, anti-blow out stem in Water, Oil and Gas

Kelite floating ball valves come available for the industries of nature gas, oil products, chemical industry, metallurgy, municipal construction, pharmacy, food, etc. as on /off control device. The body is comprised of casting or forging. Ball valve relies on ball with spherical port as closure member while the ball rotates round stem center by the force of stem in quarter turn. It serves the purpose of cutting off the media with the advantage of light weight, small size, simple structure, compact design and swift closing.

Design Standard:

• Size: NPS 2"-12"
• Pressure: Class 150-600
• Design and manufacture: BS 5351/API 608/API 6D/ASME B16.34
• Face to Face Dimensions: ASME B16.10/API 6D
• Flange Ends Dimensions: ASME B16.5
• BW Ends Dimensions: ASME B16.25
• Pressure-Temperature Ratings: ASME B16.34
• Fire Safe Design: API 607/API 6FA

Sample Material(Partial)

**Gear Operator, Electrical Operator, Hydraulic operator and etc,are avaliable

Note: Other materials are available upon request.
