Multilevel Triple Offset Butterfly Valve Electric Actuated Operation

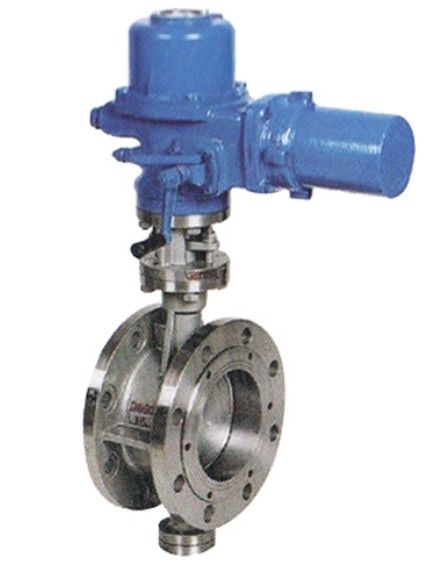

Large Image : Multilevel Triple Offset Butterfly Valve Electric Actuated Operation

Product Details:

Place of Origin:	China
Brand Name:	Kelite Valve
Certification:	API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number:	2"-60", CL150-600

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	Plywood packing or fumigation packing
Delivery Time:	30-60days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000-5000PCS per month

Contact Now

Detailed Product Description

Size：:	NPS 2"~60"	Pressure Rating：:	Class 150~600
Material：:	WCB, WCA, WCC,WC6, WC9, C5,C12, LCB, LCC, CF8, CF8M, CF3, DI,CF3M, CN7M, CF8C,etc	Design & Manufacturing Standard：:	API 609, ASME B16.34, BSEN 593
Face To Face：:	API 609, BSEN 558	Flanged Dimenson::	ASME B16.5 ,ASME B16.47, BSEN 558
Test And Inspection：:	API 598, BSEN 12266	Operation Method：:	Manual ,Worm Gear, Electric Actuator,Pneumatic Actuator
High Light:	metal seated butterfly valve , wafer type butterfly valve

Multilevel three offset eccentric butterfly valve, electric actuated operation

KELITE Group Co., Ltd. is established in 1998 with total registered capital of 205.88 million RMB. The headquarters of the group is located in South Industrial Zone, Longyou County, Quzhou City, Zhejiang Province. The group has many years' experience in the valve industry for research & development, production, sales and service. The group has six subsidiaries with a sales network throughout China and annual production capacity is 32,000 T.

Standard:

1. Design standard: API609

2. Material pressure-Temperature standard: ASME B16.34

3. Face to Face Dimension standard:

a) Flange short pattern to ISO5752 Basic series 13

b) Flange Long pattern to ASME B16.10 for flanged gate valve

4. Flange ends dimension standard: ≤24inch to ASME B16.5. >24inch to ASME B16.47 Series B.

5. Inspection Standard: API598

Specifications:

TYPE	ON/OFF
DEION	TRIPLE ECCENTRIC/METAL TO METAL
MODEL NO.	Multilevel three offset eccentric butterfly valve, electric actuated operation
SIZE	NPS 2”～60”(DN50～DN1500)
WORK TEMPERATURE	-196℃～593℃
WORK PRESSURE	CLASS 150～600 (PN20～PN180)
MATERIAL	A216 WCB/WCC；A217 WC6/WC9/C5/C12/C12A/CA15；A351 CF8/CF8M/CF3/CF3M/CF8C/CN3MN/CK3MCUN/CN7M； A352 LCB/LCC；A494 CW-6MC/CU5MCuC/M35-1；A890 4A(CD3MN)/5A(CE3MN)/6A(CD3MWCuN) etc.
DESIGN CODE	API 609/ASME B16.34/GB/T 12238
F-F	ASME B16.10/GB/T 12221
END	ASME B16.5/ASME B16.47/ASME B16.25/GB/T 9113
TEST STANDARD	API 598/ISO 5208/GB/T 26480/GB/T 13927
OPERATION	LEVER/WORM GEAR/MOV/PNEUMATIC
APPLICATION	WATER PLANT/POWER PLANT/STEEL SMELT PLANT/CHEMICAL PLANT/SEWAGE TREATMENT/ENVIRONMENTAL PROTECTION SYSTEM/
NOTE1	DESIRABLE OPERATION, STABLE SEALING.
NOTE2	REGULATING PERFORMANCE
NOTE3	TRIPLE ECCENTRIC CONSTRUCTION DESIGN, SEAT FACE SEPARATED ONCE OPEN, REDUCE THE FRICTION AND WEAR BETWEEN BOTH SEAT FACE, LOW OPERATION TORQUE VALUE, LONG TIME USE LIFE.

We are committed to offering porducts that meet a wide range of appications and requirments. We continually improve our product line by introducing new products and enhancing exsiting designs. Providing our customers with the best quality in the market.

Multilevel Triple Offset Butterfly Valve Electric Actuated Operation 0
