Custom Industrial Strainer / Stainless Steel Y Strainer Stable Performance

China Custom Industrial Strainer / Stainless Steel Y Strainer Stable Performance supplier

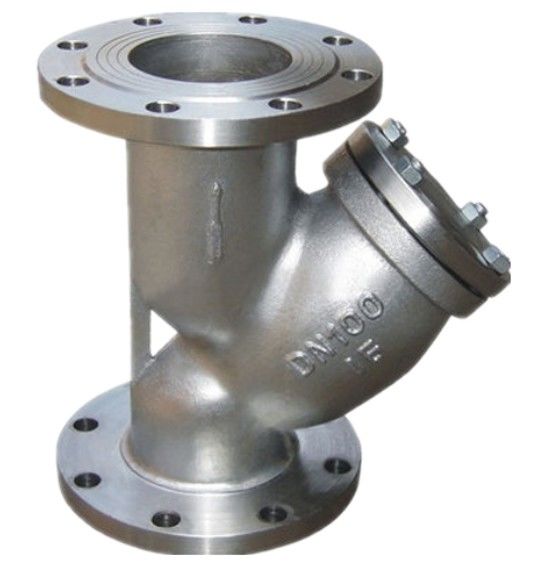

Large Image :  Custom Industrial Strainer / Stainless Steel Y Strainer Stable Performance

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 1/2"-20", CL150-1500

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 30-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000-5000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 1/2"~20" Pressure Rating:: Class 150~1500
Material:: WCB, WCA, WCC,WC6, WC9, C5,C12, LCB, LCC, CF8, CF8M, CF3, CF3M, CN7M, CF8C Design & Manufacturing Standard: HG/T 21637、ASME B16.34,
Face To Face:: ASME B16.10, EN 588 Flanged Dimenson:: ASME B16.5(BSEN 1092)
Test And Inspection:: API 598 Butt Weld Dimensions:: ASME B16.34
High Light:

stainless steel y strainer


basket type strainer

1/2"-20" CL150-1500 industrial strainer, Y type with different filter screen meshes


Kelite Valve is specialized in manufacturing Strainer with following good characteristics: good sealing performance, reliable safety guarantee, long life span and etc.


Y type Strainer is an indispensable device to transmit medium in pipeline. Y Strainer is normally installed on the inlet port of pressure reducing valve, relief valve or other devices to purify the medium and thus to ensure the normal function of valves or equipment. Strainer has the features of advanced structure, small flowing resistance, easy to drain and etc. The strainer could be used for medium of water, oil, gas. Body material could be chosen according to clients' need and stainless steel material for inner parts. When this strainer needs to be cleaned, just takes out the removable filter cartridge and clean it which makes it very easy to maintain strainer.


Sizee: NPS1/2~NPS20,DN15~DN500
Rating: Class150~Class1500,PN16~PN160
Material: Carbon Steel,Stainless Steel,Alloy Steel,Duplex Stainless Steel
Operation: Manual,Gear Operated,Electric Operated,Pneumatic Operated
Applicable: Oil,Chemical,Natural Gas,Petrochemical,Coal Chemical and so on


  • The Nominal Diameter of Strainer: Pricipally the DN of strainer should not be smaller than the inlet size of matched pump, and usually they have the same diameter.Strainer(Generally flanged connection) is suitable for using on various kinds of pipeline from Class150 To Class600, PN16 To PN100 to purify the medium in pipeline. By using different material, the valves could be suitable for medium such as water, steam, oil, nitric acid, acetic acid, oxidizing substance, carbamide and etc.
  • Nominal Pressure: The PN could be decided by the potential highest working pressure.
  • Mesh size: The mesh size should be decided by the size of impurities which needs to be purified.
  • Material of strainer: Most of the time the material is the same with the pipe that strainer is connected to. It could be cast iron, carbon steel , low alloy steel or stainless steel as needed.

Strainer product features

Strainer developed by Kelite have following good characteristics: good sealing & purification performance, reliable safety guarantee, long life span and etc.

Strainer product standard



Design and manufacture standards:ASME B16.34, HG/T 21637
Face to face dimensions standards:ASME B 16.10, GB/T 12221
Flange dimensions standards:ASME B16.5, GB/T 9113
Testing inspection standards:API 598, JB/T 9092

Technical parameters:


Product type Industrial strainer
Product description Y type filter
Model Y type filter
Nominal diameter NPS 1/2”~20”
Operating temperature -196℃~593℃
Nominal pressure CLASS 150~1500
Material Main material: A216 WCB,WCC; A217 WC6,WC9,C5,C12,C12A,CA15;A351 CF8,CF8M,CF3,CF3M,CF8C,CN3MN,CK3MCUN,CN7M; A352 LCB,LCC;A494 CW-6MC,CU5MCuC,M35-1; A890 4A(CD3MN),5A(CE3MN),6A(CD3MWCuN);ASME B 148 C95800,C95500, etc.
Design standard/td> HG/T 21637,ASME B16.34
Structural length ASME B16.10,GB/T 12221
Connecting end ASME B16.5,ASME B16.25,GB/T 9113
Test standard API 598,ISO 5208,GB/T 26480,GB/T 13927
Operation method -------
Application fields Suitable for petroleum, chemical, metallurgical, electric power, construction, thermal, water supply and drainage, water treatment industries, etc.
