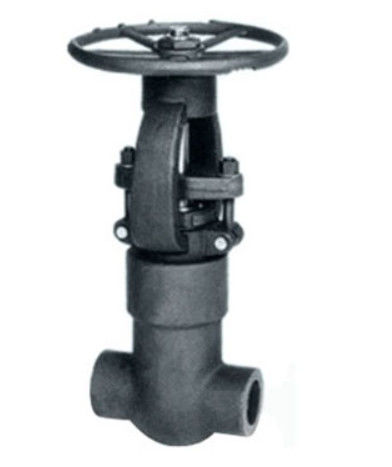

API 602 Forged Steel Valves / Pressure Seal Gate Valve NPT SW Ends

China API 602 Forged Steel Valves / Pressure Seal Gate Valve NPT SW Ends supplier

Large Image :  API 602 Forged Steel Valves / Pressure Seal Gate Valve NPT SW Ends

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 1/2"-2", CL150-1500

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 7-40days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000-5000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 1/2"~2" Pressure Rating:: Class 150~1500
Material:: A105, LF2, F5, F9, F11, F22, F304, F304L, F51 Etc Design & Manufacturing Standard:: API 602, ASME B16.34, BS 5352
Face To Face:: ASME B16.5, EN558 Flanged Dimenson:: ASME B16.5
Butt Weld Dimensin:: ASME B16.25 Test And Inspection:: API 598
High Light:

forged steel globe valve

,

forged steel ball valve

API 602 pressure self sealing forged steel gate valve, NPT, SW ends



Size: NPS 1/2"~2"
Pressure Rating: Class 150~1500
Material: A105, LF2, F5, F9, F11, F22, F304, F304L, F311, F51
Design & Manufacturing Standard: API 602, ASME B16.34, BS 5352
Face to Face: ASME B16.5, EN558
Flanged Dimenson: ASME B16.5
Butt Weld Dimensin: ASME B16.25
Threaded end Dimension: ASME B1.20.1
Socketweld dimension: ASME B1.20.1
Test and Inspection: API 598



Standard Features:



Forged steel gate valve, Outside screw and yoke, bolted bonnet, rising stem, non-rising handwheel, solid wedge, threaded or Socket weld ends, Full or Reduced bore, Designed to API-602.



Design characteristics :

  • The valve seat and the slide sealing surface are build-up welded with hard alloy to improve the scouring resistance and extend the service life of the valve
  • SS+ graphite or metallic seal or pressure self-sealing is adopted between valve body and bonnet for reliable sealing.
  • Rising stem structure, making the valve switch position be clear at a glance.
  • The valve stem thread will not come into contact with the medium, so the corrosion of medium to the thread is reduced.
  • Small switching moment, reliable sealing.
  • Small flow resistance, high flow capacity and good flow characteristics.
