Low Temperature Ball Valve Extended Bonnet Fireproof Antistatic Design

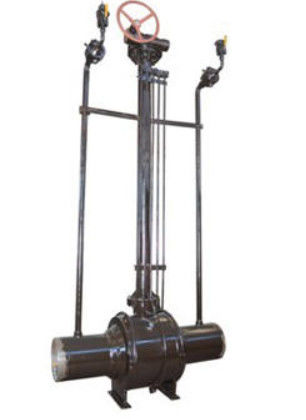

Large Image : Low Temperature Ball Valve Extended Bonnet Fireproof Antistatic Design

Product Details:

Place of Origin:	China
Brand Name:	Kelite Valve
Certification:	API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number:	1/2"-24",CL150-2500,

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	Plywood packing or fumigation packing
Delivery Time:	50-90days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000-5000PCS per month

Contact Now

Detailed Product Description

Size::	NPS 1/2"~24"	Pressure Rating::	Class 150~2500
Material::	CF8、F304、CF8M、F316, Etc.	Design & Manufacturing Standard::	API 6D、ISO 17292、API 608、BS 5351、BS 6364
Face To Face::	ASME B16.10, API 6D	End Connection::	ASME B16.5, ASME B16.47, ASME B16.25
Test And Inspection::	ISO 5208, API 6D, API598	Operation Method::	Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator
High Light:	low temperature ball valve , cryogenic gate valve

Low temperature valves for Cryogenic service of 1/2"-24" ball valves

Forging split body, full bore/reduced bore, trunnion mounted, double block and bleed, single or double piston effect, anti-blow out stem, anti-static device, fire-safe certified to API-607/6FA/ISO 10497, spring loaded Seats, sealant injection, NACE MR-01-75, NYLON, DEVLON&PEEK seat inserts, designed and tested according to ASME B16.34, BS5351 and API-6D,API-6DSS, API 6A.

Applications

Liquefied natural gas
Liquefied petroleum gas
Liquefied oxygen
Liquefied hydrogen.

Design Features & Benefits

Extended bonnet design to ensure reliability of the stem packing & sealing.
Drainage board design to prevent condensation water.
Cavity automatic self pressure relief, suitable and safe for explosive medium.
API 622 certified graphite to ensure fugitive emission compliance & fire safe requirement.
Suitable for working temperature as low as -196℃ with optional lipseal design.

Technical parameters and characteristics:

Product description	Cryogenic ball valve, lip seal, cryogenic testing, extended bonnet design
Model	Cryogenic service ball valve
Nominal diameter	NPS 1/2～NPS 24
Operating temperature	-196℃～220℃
Operating pressure	CLASS 150～CLASS 2500
Material	CF8,F304,CF8M,F316, etc.
Design standard	API 6D,ISO 17292,API 608,BS 5351,BS 6364
Structural length	ASME B16.10
Connecting end	ASME B16.5,ASME B16.25
Test standard	BS6364,API 598
Operation method	Manual, worm, pneumatic and electric
Application fields	Liquefied petroleum and natural gas
Other remarks 1	A locking device is provided to prevent misoperation of valve.
Other remarks 2	Valve stem flyout prevention structure design, to prevent accident due to flyout of valve stem caused by abnormal pressurization in the chamber
Other remarks 3	Fireproof and antistatic design
Other remarks 4	With separator design
Other remarks 5	Extended bonnet design, high sealing reliability at valve stem packing position

Low Temperature Ball Valve Extended Bonnet Fireproof Antistatic Design 0
