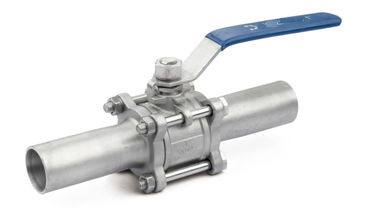

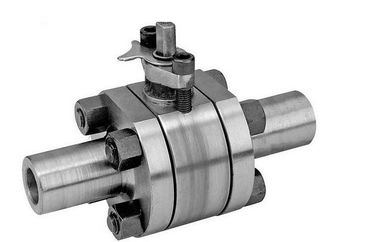

Small Three Piece Ball Valve WCB LCB CF8 CF8M CF3 CF3M A105 LF2 Material

Large Image : Small Three Piece Ball Valve WCB LCB CF8 CF8M CF3 CF3M A105 LF2 Material

Product Details:

Place of Origin:	China
Brand Name:	Kelite Valve
Certification:	API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number:	1/4"-4", CL150-2500

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	Plywood packing or fumigation packing
Delivery Time:	30-60days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000-5000PCS per month

Contact Now

Detailed Product Description

Size::	NPS 1/4"~4"	Pressure Rating::	Class 150~2500
Material::	WCB, LCB, CF8, CF8M, CF3,CF3M,A105,LF2,etc	Design Standard::	API 608, API 6D, BS 5351, ASME B16.34
Face To Face::	ASME B16.10, API 6D, BSEN 558	End Threads::	ASME B1.20.1 NPT
High Light:	float operated ball valve , stainless steel ball float valve

3 piece small floating type ball valve of 1/4"-4" CL150-600 API 6D , 608 desgin

Construction: Three piece body, free floating ball, fire-safe design, blow-out proof stem, investment and/or shell mold cast,

locking device, ISO-5211 mounting pad.
Full Bore: 1/4” – 4”
End to End: Kelite Standard Male x Female
End Threads: ASME B1.20.1 NPT

Small Three Piece Ball Valve WCB LCB CF8 CF8M CF3 CF3M A105 LF2 Material 0

Small Three Piece Ball Valve WCB LCB CF8 CF8M CF3 CF3M A105 LF2 Material 1

Small Three Piece Ball Valve WCB LCB CF8 CF8M CF3 CF3M A105 LF2 Material 2
