Material of ball valve seat : PTFE,RPTFE,PPL,PEEK,DEVLON, SS welded hard alloy
Size of three way ball valve : 1/2inch(DN15) - 48 inch (DN1200)
Pressure of three way ball valve : 150LB(PN16)-2500LB(PN2500)
Connection type : Flange(FF,RF,FM,RTJ) BW,SW,Screw
Kind of drive: Wrench,Gear,Electric actuators and pneumatic actuators
Operating temperature: -196℃ - 425℃
Working medium: water, gas,oil,Sulfuric acid and hydrochloric acid
Three way ball valves can be divided into two types according to the internal structure,one type is T type 3-way ball valve ,another type is L type 3-way ball valve, T type ball valve is mean the ball in the valve and the port of the body are have three port ,also the port are T type, L type ball valve is mean the ball in the valve have two port, but the body have three port,also the port of the ball are L type(the angle can be 90°between inlet and outlet).
Function of three way ball valve:we can change the direction of flow by turning the ball,about some of the other functions,pleace check the schematic diagram for the following:
1. All of our three way ball valves are antistatic design. between the ball and seat triboelectrification when we open or closed the ball valve.on account of the seat and packing usually use the PTFE material,the static electricity can not through the stem to the body, so we we need install a metal hoodle, the static electricity just past the stem and metal hoodle to the body.thus Eliminate the static electricity.
2. All of our three way ball valves are fire safety design.we usually use the PTFE as a seat, the PTFE seat will melt and the medium will through the valve leakage out when the fire happened,so we need make a meatal seat installed in the back of the PTFE seat, the metal seat can continue to seal when the PTFE seat melting.
3. All of our three way ball valves can installation of electric actuators and pneumatic actuators
The top flange of the ball valve designed to ISO5211,which is convenient for connection and exchange of various drivers,the common driving types are manual, electrical, pneumatic and pneumatic/ hydraulic.

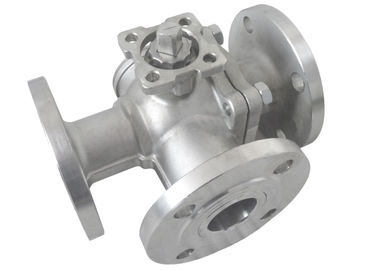

| Three Way Ball Valves |
Full Bore / Regular (Reduce) Bore Ball Valve
Flanged / Screwed / Socket / Butt Weld End Connection
Hand Lever / Gear / Pneumatic Operation
Three Way Ball Valve come with either L Port or T Port for suitable service condition. Mixing and Diverting Type Three Way Ball Valves are also available. Four Way Ball Valve available with Double L Port. The Three Way & Four Way Ball Valve features four seats for equal seat loading. Multiple Gland Packing Seal & Spring Washer gives zero leakage from gland portion.
|
|
| Three Way Ball Valve (Screwed) Model |
|
| 3 Way Pneumatic Ball Valve (4 Seat Design) Model |
|
| Three Way Ball Valve (Flanged End) Model |
|
| 3 Way Ball Valve (4 Seat Design) Model |
|
| 3 Way Pneumatic Ball Valve (4 Seat Design) Model |
|
| 3 Way Ball Valve (2 Seat Design) Model |
|
| 3 Way Gear Ball Valve (Extended Bonnet / 2 Seat Design) Model |
|
| Three Way Jacketed Ball Valve |
|
Salient Features:
- High Performance Ball Valve
- Longer Life
- Positive Shut off
- Quick in Action
|
|
- No Lubrication
- Compact Design
- Low Pressure Drop
- Simplicity
|
| Design & Testing International Standard: |
| |
Valve Design |
BS 5351 / ANSI B 16.34 / API 6D |
| |
Pressure Testing |
BS 6755 Part II / API 598 / API 6D |
| |
Face To Face |
:Mfg. Standard |
| |
Flange Drilling |
ANSI B 16.5 / BS 10 Table / DIN / IS 6392 |
| |
Butt Weld End |
ANSI B 16.25 |
| |
Socket Weld End |
ANSI B 16.11 |
| |
Screwed End |
ANSI B 1.20.1(BSP/NPT) |
| Material of Construction: |
| |
Body / End Connector Piece: |
| |
Cast Iron to ASTM A 126 Class B IS 210 GR. FG 200 / 220 / 260 |
| |
Ductile Iron to ASTM A 536 Grade 65-45-12 |
| |
Cast Carbon Steel to ASTM A 216 GR. WCB |
| |
Stainless Steel to ASTM A 351 GR. CF 8 / 8M / 3 / 3M |
| |
Hast Alloy B / C |
| |
ASTM A 351 GR. CN 7M (Alloy 20) |
| |
Ball: |
| |
Stainless Steel to ASTM A 351 GR. CF 8 / 8M / 3 / 3M |
| |
Hast Alloy B / C |
| |
ASTM A 351 GR. CN 7M (Alloy 20) |
| |
Stem: |
| |
AISI 410 (S.S. 410 13% Cr. Steel) |
| |
AISI 304 (S.S. 304) |
| |
AISI 316 (S.S. 316) |
| |
AISI 304L (S.S. 304L) |
| |
AISI 316L (S.S. 316L) |
| |
Hast Alloy B / C |
| |
Alloy 20 |
| |
Ball Seat / Gland Seal / Stem Seal |
| |
P.T.F.E. Virgin |
| |
P.T.F.E. Glass Filled |
| |
P.T.F.E. Carbon Filled |
| |
Grafoil |
|
|
Three Way Ball Valve Range:
