6 Inch Soft Seated Ball Valve Pneumatic Drive Unit Motor - Drive Unit

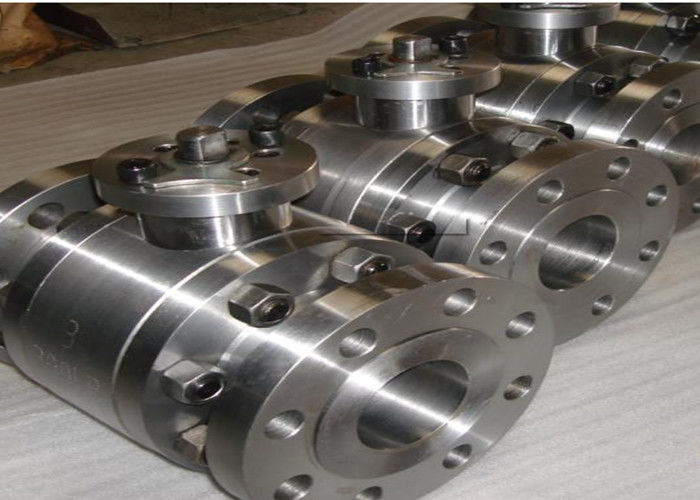

Large Image : 6 Inch Soft Seated Ball Valve Pneumatic Drive Unit Motor - Drive Unit

Product Details:

Place of Origin:	China
Brand Name:	Kelite Valve
Certification:	API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number:	1/2"-12", CL150-2500

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	Plywood packing or fumigation packing
Delivery Time:	30-60days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000-8000PCS per month

Contact Now

Detailed Product Description

Size::	NPS 1/2"~12"	Pressure Rating::	Class 150~2500
Material::	A105,LF2,F304, F316,F304L,F316L,F22,etc	Design & Manufacturing Standard::	API 608,API 6D,BS 5351,ASME B16.34
Face To Face::	ASME B16.10, API 6D, BSEN 558	End Connection::	ASME B16.5, BSEN 1092
Test And Inspection::	ISO 5208, API 6D, BSEN 12266, API 598	Operation Method::	Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator
High Light:	stainless steel ball float valve , fire safe ball valve

Soft Seat forging floating type ball valve of 1/2"-12" CL150-2500 API 6D, 608 desgin

Standard Features:

Forging split body, full bore/reduced bore, floating ball, fire-safe certified to API-607/6FA, anti-blow out stem, cavity relieving seats, anti-static device, RTFE, Delrin, NYLON&DEVLON seat inserts, designed and tested according to ASME B16.34, BS5351 and API-6D.

6 Inch Soft Seated Ball Valve Pneumatic Drive Unit Motor - Drive Unit 0

ANTI-STATIC DESIGN

Floating ball valves present a particular problem with the build up of static electricity around the ball. All Kelite ball valves have anti-static devices which provides contact between stem and ball, and stem and body to eliminate static electricity.

6 Inch Soft Seated Ball Valve Pneumatic Drive Unit Motor - Drive Unit 4

FIRE SAFE DESIGN

In the event of a fire the valve is required to make a downstream seal. Even after the disintegration of the RTFE seats, KELITE ball valves have an excellent metal to metal seal. Special attention has been paid to the mechanical strength and sealing efficiency of the central flanged joint in the valve body.

6 Inch Soft Seated Ball Valve Pneumatic Drive Unit Motor - Drive Unit 5

SEAL DESIGN

The PTFE gasket packing acts as a primary seal for the unibody ball valves. The secondary seal has been made out of flexible graphite, a material with extremely good resistance to fire conditions.

6 Inch Soft Seated Ball Valve Pneumatic Drive Unit Motor - Drive Unit 6

BLOW-OUT PROOF STEM DESIGN

The combination of stem packingand o-rings guarantee zero emissions even at a low pressure. The primary seal is made out of flexible graphite, a material with extremely good resistance to fire conditions. The anti-blow out stem is inserted from inside the valve body.

Technical parameters:

Product description	Forging floating ball valve of 1/2"-12" CL150-2500 API 6D, 608 desgin
Model	Forging floating ball valve
Nominal diameter	NPS 1/2～NPS 12
Operating temperature	-46℃～121℃
Operating pressure	CLASS 150～CLASS 2500
Material	A105,LF2,F304,CF8M,F316, etc.
Design standard	API 608,ISO 17292,BS 5351
Structural length	ASME B16.10
Connecting end	ASME B16.5,ASME B16.25
Test standard	API 598
Operation method/td>	Handle, worm, motor-drive unit, pneumatic drive unit
Application fields	Water, petroleum and natural gas
Other remarks 1	A locking device is provided to prevent misoperation of valve.
Other remarks 2	Valve stem flyout prevention structure design, to prevent accident due to flyout of valve stem caused by abnormal pressurization in the chamber
Other remarks 3	Fireproof and antistatic design
Other remarks 4	Full bore of valve convenient for pigging, of small flow resistance and high flow capacity

6 Inch Soft Seated Ball Valve Pneumatic Drive Unit Motor - Drive Unit 7
