Carbon Steel Centerline Butterfly Valves / Soft Seat Butterfly Valve

China Carbon Steel Centerline Butterfly Valves / Soft Seat Butterfly Valve supplier
Carbon Steel Centerline Butterfly Valves / Soft Seat Butterfly Valve supplier Carbon Steel Centerline Butterfly Valves / Soft Seat Butterfly Valve supplier

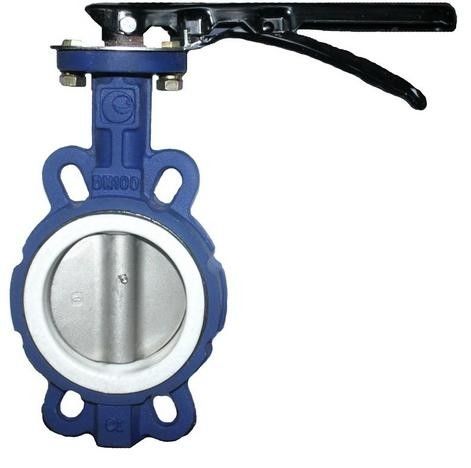

Large Image :  Carbon Steel Centerline Butterfly Valves / Soft Seat Butterfly Valve

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 1 1/2"-50", CL150

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 30-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000-5000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 1 1/2"~50" Pressure Rating:: Class 150
Material:: WCB, WCA, WCC,WC6, QT, DI,C12, LCB, LCC, CF8, CF8M, CF3, CF3M, CN7M, CF8C,etc Design & Manufacturing Standard:: API 609, ASME B16.34, BSEN 593
Face To Face:: API 609, BSEN 558 Flanged Dimenson:: ASME B16.5 ,ASME B16.47, BSEN 558
Test And Inspection:: API 598, BSEN 12266 Operation Method:: Manual ,Worm Gear, Electric Actuator,Pneumatic Actuator
High Light:

lug style butterfly valve


soft seat butterfly valve

API 609 centerline butterfly valve, 1 1/2"-50" soft seat QT,cs and SS material



A resilient seated butterfly valve with superior design features and materials of construction to provide repeatable tight shutoff in severe abrasive and corrosive environments for a variety of applications.

Size: 1½ - 50"

Class: 150

Temperature: 14° to +300°F (-10° to +149°C)

Face to Face: All short pattern

Body Types: Wafer w/ Centering Lugs, Wafer, Lugged, Flanged


Model: With Carbon Iron Body and Gear Operator.
Valve Body materials: cast iron, ductile iron, aluminum bronze, stainless steel, carbon steel.
Pressure: from PN0.6MPa to PN1.6MPa.
Applicable temperature: from -40 degrees C to 230 degrees C.
Flange drilling to: DIN 2501, BS 4504, ISO 2084/2531, BS 10-E, ASA 125/150, AS2129 Table D/E.

Technical parameters and characteristics:

Product type ON/OFF
Product description Centerline type butterfly valve
Model D41X-centerline type butterfly valve
Nominal diameter NPS 2”~40”(DN50~DN1000)
Operating temperature -15℃~150℃
Nominal pressure CLASS 150~300 (PN20~PN50)
Material Main material: A216 WCB,WCC; A351 CF8,CF8M,CF3,CF3M,CF8C,A352 LCB,LCC, QT,CI etc.
Design standard API 609,ASME B16.34
Structural length ASME B16.10,GB/T 12221
Connecting end ASME B16.5,ASME B16.47,ASME B16.25,GB/T 9113
Test standard API 598,ISO 5208,GB/T 26480,GB/T 13927
Operation method Handle, worm, motor-drive unit, pneumatic drive unit
Application fields Fresh water, sewage, seawater, brine, steam, natural gas, food, drug, oils and various acids and alkali, and other pipelines
Other remarks 1 Small, light, installation, disassembly and repair friendly (can be installed at any position)
Other remarks 2 Simple and compact structure, and quick opening and closing with 90° rotation
Other remarks 3 Small operating torque easy for opening and closing
Other remarks 4 Flow characteristics almost in straight line, and good adjustment function
Other remarks 5 Long service life (tested for over 10,000 times of opening and closing)
Other remarks 6 Good sealing performance of zero leakage
Other remarks 7 Two flow directions, no restriction for installation
