Y Type Industrial Strainer High Filter Precision High Assimilative Capacity

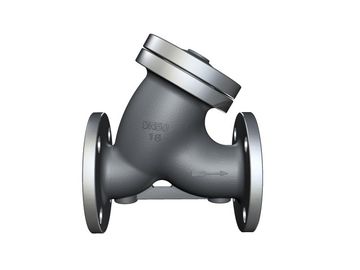

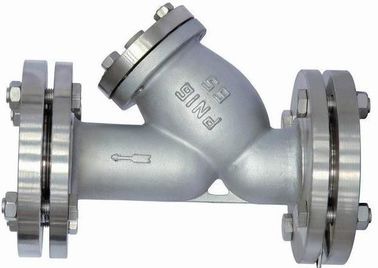

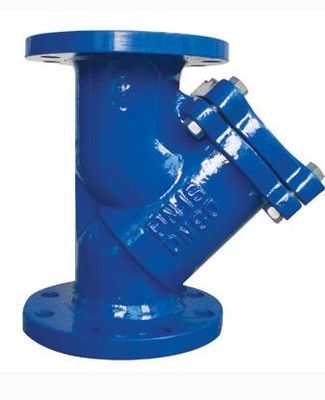

Large Image : Y Type Industrial Strainer High Filter Precision High Assimilative Capacity

Product Details:

Place of Origin:	China
Brand Name:	Kelite Valve
Certification:	API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number:	2"-36", CL150-900

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	Plywood packing or fumigation packing
Delivery Time:	30-70days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000-5000PCS per month

Contact Now

Detailed Product Description

Size：:	NPS 2"~36"	Pressure Rating：:	Class 150~900
Material：:	WCB, WCA, WCC,WC6, WC9, C5,C12, LCB, LCC, CF8, CF8M, CF3, CF3M, CN7M, CF8C	Design & Manufacturing Standard:	HG/T 21637、ASME B16.34,
Face To Face：:	ASME B16.10, EN 588	Flanged Dimenson：:	ASME B16.5(BSEN 1092)
Test And Inspection：:	API 598	Butt Weld Dimensions：:	ASME B16.34
High Light:	stainless steel y strainer , basket type strainer

2"-36" CL150-900 industrial strainer, Y type with different filter screen meshes

Design characteristics :

As the filtering area is larger than that of Y type filter, it is suitable for working conditions with high quantity of impurities..
It can be repaired and maintenanced easy, and can be used again by simply removing and cleaning the filter screen..
Different filter screen meshes are available.
High filter precision, and stable effluent quality.
High assimilative capacity.

Technical parameters:

Product type	Industrial strainer
Product description	Y type filter
Model	GL41H-Y type filter
Nominal diameter	NPS 2”～36”
Operating temperature	-196℃～593℃
Nominal pressure	CLASS 150～900
Material	Main material: A216 WCB,WCC; A217 WC6,WC9,C5,C12,C12A,CA15;A351 CF8,CF8M,CF3,CF3M,CF8C,CN3MN,CK3MCUN,CN7M; A352 LCB,LCC;A494 CW-6MC,CU5MCuC,M35-1; A890 4A(CD3MN),5A(CE3MN),6A(CD3MWCuN)；ASME B 148 C95800,C95500, etc.
Design standard/td>	HG/T 21637,ASME B16.34
Structural length	ASME B16.10,GB/T 12221
Connecting end	ASME B16.5,ASME B16.25,GB/T 9113
Test standard	API 598,ISO 5208,GB/T 26480,GB/T 13927
Operation method	-------
Application fields	Suitable for petroleum, chemical, metallurgical, electric power, construction, thermal, water supply and drainage, water treatment industries, etc.
