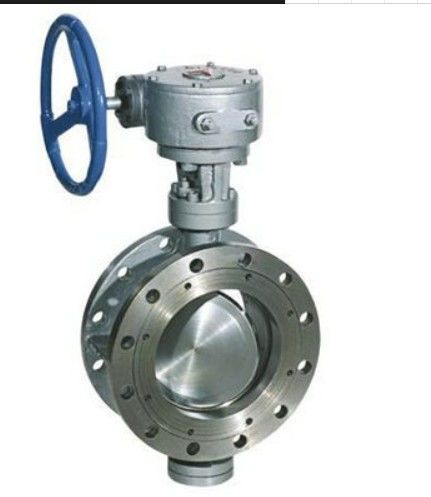

Triple Eccentric Butterfly Valve Metal Seated Feature Two Directional Flow

China Triple Eccentric Butterfly Valve Metal Seated Feature Two Directional Flow supplier

Large Image :  Triple Eccentric Butterfly Valve Metal Seated Feature Two Directional Flow

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 2"-60", CL150-900

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 30-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000-5000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 2"~60" Pressure Rating:: Class 150~900
Material:: WCB, WCA, WCC,WC6, WC9, C5,C12, LCB, LCC, CF8, CF8M, CF3, CF3M, CN7M, CF8C,etc Design & Manufacturing Standard:: API 609, ASME B16.34, BSEN 593
Face To Face:: BSEN 558, API 609, Flanged Dimenson:: ASME B16.5 ,ASME B16.47, BSEN 558
Test And Inspection:: API 598, BSEN 12266 Operation Method:: Manual ,Worm Gear, Electric Actuator,Pneumatic Actuator

Triple Offset Fully Metal to Metal Seated Butterfly Valve,two directional flow





The design of renewable seat and seal ring could avoid the valve damaged caused by the wear of seal ring and reduce the cost of use.

Its advantages are anti-wear, anti-erosion and long service life,etc. Kelite butterfly valve suitable for mant poor working conditions such as high pressure and high temperature.

he pressure of bidirectional flow could be afforded to achieve no flow restrictions on the installation.



The first eccentricity:

The deviation between stem rotation center and the seat centerline ensures a tight seal between the seat and disc.



The second eccentricity:

The deviation between sealing cone center and the valve centerline, when the valve opens, can make the butterfly plate leaves sealing surface quickly.



The third eccentricity:

The deviation between sealing cone center and the valve centerline, when the valve opens or closes, can eliminate the friction between the disc sealing surface and seat.



ASME Standard



Design and Manufacture Standard: API 609 Inspection Test Standard: API 598
Material Pressure-temp. Standard: ASME B16.34 Flange ends: Size≤24” according to ANSI B16.5
Face to Face: Flange Short Pattern to ISO5752 Basic Series 13 Dimension Standard: Size≥24” according to ANSI B16.47 Series B
Dimension Standard: Flange Long Pattern to ASME B16.10 Fire Safe Standard: API 607



Pressure Testing Pressure at Constant Temp.(MPa) Applicable Temp. Applicable Medium



Class

(LB)

Shell Test Seal Test Air Test -46℃~550℃ W.O.G. etc.
150 3.0 2.2 0.6
300 7.58 5.52 0.6
600 15.0 11.03 0.6
900 22.5 16.5 0.6



DIN Standard



Design and Manufacture Standard: DIN 2559 Pressure Test: EN 12266-1
Pressure Testing Pressure at Constant Temp.(MPa) Applicable Temp. Applicable Medium
Shell Test Seal Test Air Test

Nominal

Pressure

1.0 1.5 1.1



0.5-0.7



-40℃~570℃ W.O.G. etc.
1.6 2.4 1.76
2.5 3.75 2.75


GOST Standard



Design and Manufacture Standard JB/8527 API609 Pressure Test GB/T 13927 API598
Pressure Testing Pressure at Constant Temp.(MPa) Applicable Temp. Applicable Medium
Shell Test Seal Test Air Test

Nominal

Pressure

1.0 1.5 1.1



0.5-0.7



-40℃~570℃ W.O.G. etc.
1.6 2.4 1.76
2.5 3.75 2.75



Characteristics



Triple eccentricity refers to an angle eccentricity added on the basis of the double eccentric structure, as the butterfly valve sealing surface shows an oblique cone. This structure is characterized by the outer side of the disc to be processed into an oblique cone, and also the inner side of the sealing seat is processed into an oblique cone. At this time, the section of the valve sealing surface the becomes oval, thus the shape of the disc sealing surface is under the vertical asymmetry. Because the sealing surface is the oblique cone, the large part of the disc separated by the stem shaft presses the seat upwards along the large inclined surface, and the large part of the disc presses the seat downwards along the small inclined surface. The seal between the disc sealing ring and the seat does not rely on the elastic deformation of the seat, but completely depends on the compact of the touching surface. So there is no friction in the process of the triple eccentric butterfly valve basically opening and closing, and the valve closes tightly with the closing pressure increasing. It is obvious from the principle and structure of the triple eccentric butterfly valve, the triple eccentric butterfly valve has the following advantages:

1) The sealing performance and reliability of the system are improved.

2) The friction is low, and the valve opening and closing flexibly.

3) The valve service life is longer and it could switch repeatedly.

4) The resistance of pressure and high temperature is improved, and the range of applications is wide.



Characteristics



1. Kelite butterfly valve is characterized by simple structure, small volume and light weight, and it is easy to install and adjust.

    The valve is widely used in the medium and low pressure pipeline.

2. Good sealing performance,corrosion resistance,high pressure and temperature resistance, smart control and safe use.
3. The unique design of triple eccentricity makes no friction between the sealing surface and extend the valve service life.
4. The elastic seal is produced by the torque.
5. The wedge design makes the valve close more and more tightly by automatic sealing function, and there’s compensation

   and zero leakage between the sealing surfaces.



Material for Main Parts



Parts Name Material
Body WCB, 304, 316, 316 L, CF8M,etc.
Disc WCB, 304, 316, 316 L, CF8M, etc.
Stem 316, 2Cr13, 1Cr18Ni9Ti, etc.
Sealing Ring 316, Fluorine Plastic, etc.
Packing Flexible Graphite, Fluorine Plastic, etc.
