Product Details:
Payment & Shipping Terms:
|
| Size:: | NPS 2"~12" | Pressure Rating:: | Class 150~600 |
|---|---|---|---|
| Material:: | WCB, LCB, CF8, CF8M,CF3M, ETC | Design Standard:: | API 608, API 6D, BS 5351, ASME B16.34 |
| Face To Face:: | ASME B16.10, API 6D, BSEN 558 | End Connection:: | ASME B16.5, BSEN 1092 |
| High Light: | float operated ball valve,stainless steel ball float valve |
||

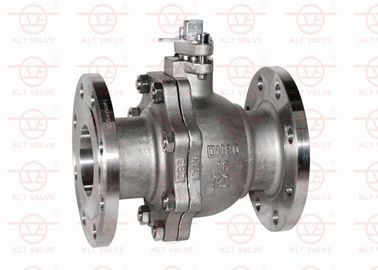

Two piece floating type ball valve, Anti-static design, RTFE seat
| Size | NPS 1/2″~12″ |
|---|---|
| Pressure Rating | Class 150~600 |
| Material | WCB,LCB,CF8,CF8M,CF3,CF3M, |
| Design & Manufacturing Standard | API 608,API 6D,BS 5351,ASME B16.34 |
| Face to Face | ASME B16.10,API 6D,BSEN 558 |
| End Connection | ASME B16.5,BSEN 1092 |
| Test and Inspection | ISO5208,API 6D,BSEN 12266 |
| Operation Method | Manual,Worm Gear,Electric Actuator,Pneumatic Actuator |
A floating ball valve is a valve with its ball floating (not fixed by a trunnion) inside the valve body; it drifts toward to the downstream side and tightly pushes against the seat under the medium pressure to ensure a reliable seal. The floating ball valve is a simple design with good sealing performance relying on the seat material to withstand the workload as the sealing pressure is barred by the seat ring. Floating ball valves are mainly used in low to mid level pressure applications.
Kelite steel ball valves are designed manufactured to provide maximum service life and dependability. All ball valves are full ported and meet the design requirements of American Petroleum Institute Standard API 608&API 6D British standard BS 5351 and generally conform to American Society of Mechanical engineers standard ASME B16.34 valves are available in a complete range of body/bonnet materials and trims. Standard body/bonnet materials include nine grades of carbon, low alloy and stainless steel, for special applications they can be supplied in other grades of alloy and stainless steel. There's a full range of trim materials to match any service optional packing and gasket materials are available for a full range of service conditions.
Extended lever for easy operation. Also available with gearing, motor actuators, pneumatic or hydraulic actuators for more difficult services
Split or 3-piece,split body& bonnet for 12" & small. Disassembles easily for repair or replacement of internal components.
Full bore or reduced bore. Full-bore design provides exceptional flow control.
A choice of flanged RTJ flanged or buttwelding end for piping flexibility. E)Packing
Std packing multiple v-teflon packing, combined with live loading,maintains packing compression under high-cycle and severe service applications.
Blow-out proof stem, a pressure-safe stem shoulder design that protects against failure under excess pressure.
Anti statics. A metallic contact is always granted between ball and stem /body to discharge eventual statics build-up during service. H)FS
Fire safe designed to API607 or BS 6755 to grant their operation suitability in case of fire. Secondary metal-to metal seal acts as backup if primary seal is destroyed by fire. Valves ordered for compliance with API 607 will be provided with graphite packingand gaskets.
