Electric Wafer Centerline Butterfly Valves , Ductile Iron Butterfly Valve

China Electric Wafer Centerline Butterfly Valves , Ductile Iron Butterfly Valve supplier

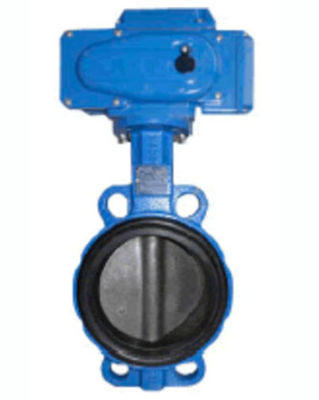

Large Image :  Electric Wafer Centerline Butterfly Valves , Ductile Iron Butterfly Valve

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 2"-50", CL150-CL300,PN1-PN16

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 10-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000-5000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 2"~50" Pressure Rating:: Class 150-CL300,PN10-16
Material:: WCB, WCA, WCC,WC6, QT, DI,C12, LCB, LCC, CF8, CF8M, CF3, CF3M, CN7M, CF8C,etc Design & Manufacturing Standard:: API 609, ASME B16.34, BSEN 593
Face To Face:: API 609, BSEN 558 Flanged Dimenson:: ASME B16.5 ,ASME B16.47, BSEN 558
Test And Inspection:: API 598, BSEN 12266 Operation Method:: Manual ,Worm Gear, Electric Actuator,Pneumatic Actuator

Electric Wafer centerline butterfly valve, PN10-PN16, ductile cast iron material



KELITE has technological research & development center, Longke valve research institute, product research & development center of Nanjing University of Technology to continuously makes new products and innovates existing products and also KELITE has gotten API 6D, API 607/API 6FA, CE, IS0 9001, IS0 14001, OHSAS 18001, TS and marine certificate. We are member of China General Machinery Industry Association Valve Branch, China Gas Association, supplier of Petro China, Sinopec China National Offshore Oil Corporation, China Huadian Corporation, China Gas Holdings, China Guodian Corporation, and etc. We are awarded Chinese reform outstanding company, one of the ten major brands of Chinese valve industry.



Kelite Valve is specialized in manufacturing butterfly valve with following good characteristics: good sealing performance, reliable safety guarantee, Long working life. completitive cost and 24 hours after sale services and etc.

Sizee: NPS2~NPS50
Rating: Class150-CL300,PN10-PN16
Material: DI,Carbon Steel,Stainless Steel,Alloy Steel,Duplex Stainless Steel
Applicable: Oil,Chemical,Natural Gas,Petrochemical,Coal Chemical



Technical parameters and characteristics:

Product type ON/OFF
Product description Centerline type butterfly valve
Model D41X-centerline type butterfly valve
Nominal diameter NPS 2”~50”(DN50~DN1250)
Operating temperature -15℃~150℃
Nominal pressure CLASS 150~300 (PN20~PN50)
Material Main material: A216 WCB,WCC; A351 CF8,CF8M,CF3,CF3M,CF8C,A352 LCB,LCC, QT,CI etc.
Design standard API 609,ASME B16.34
Structural length ASME B16.10,GB/T 12221
Connecting end ASME B16.5,ASME B16.47,ASME B16.25,GB/T 9113
Test standard API 598,ISO 5208,GB/T 26480,GB/T 13927
Operation method Handle, worm, motor-drive unit, pneumatic drive unit
Application fields Fresh water, sewage, seawater, brine, steam, natural gas, food, drug, oils and various acids and alkali, and other pipelines
Other remarks 1 Small, light, installation, disassembly and repair friendly (can be installed at any position)
Other remarks 2 Simple and compact structure, and quick opening and closing with 90° rotation
Other remarks 3 Small operating torque easy for opening and closing
Other remarks 4 Flow characteristics almost in straight line, and good adjustment function
Other remarks 5 Long service life (tested for over 10,000 times of opening and closing)
Other remarks 6 Good sealing performance of zero leakage
Other remarks 7 Two flow directions, no restriction for installation



Typical Application:



1 . Checmical

2 . Petrochemical processing

3 . Food and Beverage

4 . Power and Utilities

5 . Pulp and Paper



We are committed to offering porducts that meet a wide range of appications and requirments. We continually improve our product line by introducing new products and enhancing exsiting designs. Providing our customers with the best quality in the market.
