Steel Electric Plug Valve Pressure Balance Handle Or Gear Operation

China Steel Electric Plug Valve Pressure Balance Handle Or Gear Operation supplier

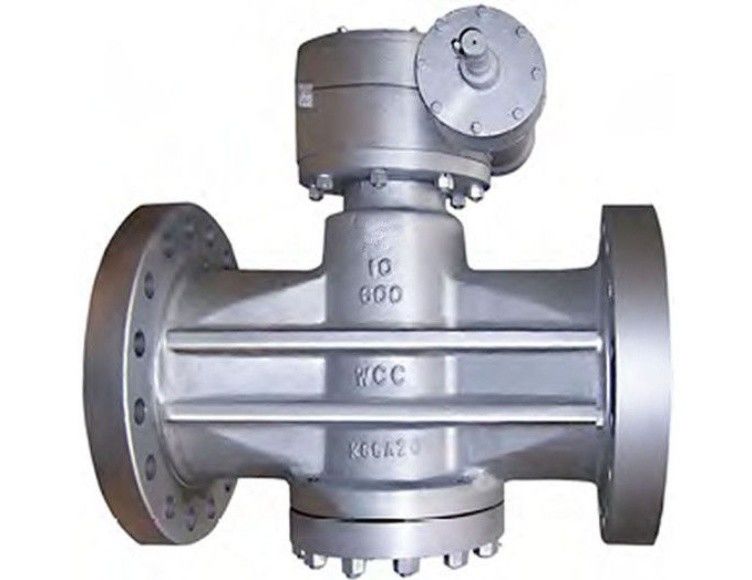

Large Image :  Steel Electric Plug Valve Pressure Balance Handle Or Gear Operation

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 2"-24"

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 40-80days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000-5000PCS per month
Contact Now
Detailed Product Description
Size:: 2"-24" Pressure Rating:: CL150-CL1500
Material:: WCB, LCB,CF8, CF8M, CF3, CF3M,A105,LF2 Design & Manufacturing Standard:: API 6D、API 599、ASME B16.34
Face To Face:: ASME B16.10, API 6D,API 599 End Connection:: ASME B16.5 ,ASME B16.25
Test And Inspection:: API 598、ISO 5208、GB/T 26480、GB/T 13927 Operation Method:: Hand Wheel, Pneumatic Drive Unit

Pressure balance type steel plug valve 2"-24", handle or gear operation





Size NPS 2″~24″
Pressure Rating Class 150~1500
Material WCB,LCB,CF8,CF8M,CF3,CF3M
Design & Manufacturing Standard ASME B16.34,API 6D,API 599
Face to Face ASME B16.10,API 6D
End Connection ASME B16.5,ASME B16.25
Test Standard ISO 5208,API 6D
Structure Type Short Type,Regular Type,Venturi Type,Full Operation Type
Operation Method Manual,Worm Gear,Electric Actuator,Pneumatic Actuator





Applicable Standards:

DESIGN & MANUFACTURE CONFORM WITH: API 6D/ISO 14313, ASME B16.34
CONNECTION DIMENSION CONFORMS WTIH: ASME B16.5, DIN EN 1092
FIRE RESISTANCE DESIGN CONFORMS WITH: API 607/ISO 10497
INSPECTION & TEST CONFORMS WITH: API 6D, ISO 5208, API 598
MATERIAL CONFORMS WITH: ISO 15156



Materials of parts

Body
Cock body
Stem
Lower cover
O-ring
Stud
Nut
Gasket
WCB/LCB/CF8M/CF8/CF3M/CF3/WC6/WC9/CD3MN
WCB+N/CA15/4140+ENP/CF8M/CF8/CF3M/CF3/CD3MN
F6a/4140+ENP/F304/F316/F304L/F316L/F51
A105/LF2/F304/F316/F304L/F316L/F51
VITON/NBR
B7M/B8M/L7M/B16M
2HM/8M/7M/4M
Flexible graphite+304/PTFE/304






Plug Valve Introduction



1. Usage
   It is mainly used for storage and transportation of oil and gas in the chemical industry, metallurgy, paper making, food processing, shipbuilding       and other industries, used to open or close, and with pneumatic and electrical devices can also achieve the long-distance operation, to ensure       personal safety.



2. Features

  • Lockup device, manual operation, in order to prevent misoperation, valve can be equipped with padlock device.
  • Anti-static structure, when a fire break out, the metal seal forms to prevent large leakage of media
  • Valve body and stem can finish emergency injection seal, through the grease injection valve, the stop-leak compound can achieve a short-time seal, there for to buy time handling the scene.
