Solid Wedge Forged Steel Valves , Pressure Seal Globe Valve Reduced Bore

China Solid Wedge Forged Steel Valves , Pressure Seal Globe Valve Reduced Bore supplier

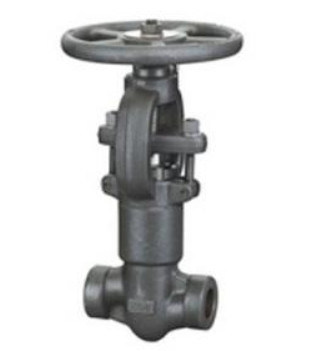

Large Image :  Solid Wedge Forged Steel Valves , Pressure Seal Globe Valve Reduced Bore

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 1/2"-2", CL150-1500

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 5-40days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000-5000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 1/2"~2" Pressure Rating:: Class 150~1500
Material:: A105, LF2, F5, F9, F11, F22, F304, F304L, F51 Etc Design & Manufacturing Standard:: API 602, ASME B16.34, BS 5352
Face To Face:: ASME B16.5, EN558 Flanged Dimenson:: ASME B16.5
Butt Weld Dimensin:: ASME B16.25 Test And Inspection:: API 598

API 602 Forged steel valves of pressure self sealing globe valve, NPT, SW ends


Size: NPS 1/2"~2"
Pressure Rating: Class 150~1500
Material: A105, LF2, F5, F9, F11, F22, F304, F304L, F311, F51
Design & Manufacturing Standard: API 602, ASME B16.34, BS 5352
Face to Face: ASME B16.5, EN558
Flanged Dimenson: ASME B16.5
Butt Weld Dimensin: ASME B16.25
Threaded end Dimension: ASME B1.20.1
Socketweld dimension: ASME B1.20.1
Test and Inspection: API 598


Standard Features:

Forged steel globe valve, Outside screw and yoke, bolted bonnet, Rising stem, non-rising handwheel, Solid wedge, Threaded or Socket weld ends, Full or Reduced bore, Designed to API-602.

Design characteristics :

  • The valve seat and the slide sealing surface are build-up welded with hard alloy to improve the scouring resistance and extend the service life of the valve
  • SS+ graphite or metallic seal or pressure self-sealing is adopted between valve body and bonnet for reliable sealing.
  • Rising stem structure, making the valve switch position be clear at a glance.
  • The valve stem thread will not come into contact with the medium, so the corrosion of medium to the thread is reduced.
  • Small switching moment, reliable sealing.
  • Small flow resistance, high flow capacity and good flow characteristics.


Technical parameters:


Product description

API 602 forging valve, small size forging steel globe valve,

NPT, SW, BW ends

Model Small forging steel globe valve
Nominal diameter NPS 1/2”~2”
Operating temperature -29℃~595℃(the range of service temperature may vary for different materials)
Nominal pressure CLASS 150~1500
Material Main material: :A105,A350 LF2,A182 F11,A182 F22,A182 F304,A182 F316,A182 F51,B150 C61900,B564 N04400,B546 N06625,etc.
Design standard ISO 15761,API 602,BS 5352,ASME B16.34
Structural length Company standard,ASME B16.10(flange type)
Connecting end ASME B16.5,ASME B16.25,ASME B16.11
Test standard API 598
Operation method Hand wheel, motor drive unit, pneumatic drive unit
Application fields Oil and natural gas pipelines, and urban gas pipeline


Kelite valves has a large of standard material stock and weclome for requesting.
