|Size::||NPS 1/2"~8"||Pressure Rating::||Class 150~600|
|Material::||WCB, LCB, CF8, CF8M, CF3,CF3M||Design Standard::||API 608, API 6D, BS 5351, ASME B16.34|
|Face To Face::||ASME B16.10, API 6D, BSEN 558||End Connection::||ASME B16.5, BSEN 1092|

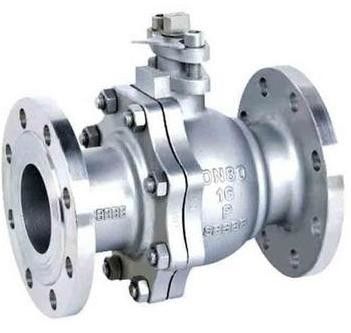

Split Casting floating type ball valve of 1/2"-8" CL150-600 API 6D , 608 desgin
Split body, full bore/reduced bore, floating ball, fire-safe certified to API-607/6FA, anti-blow out stem, cavity relieving seats, anti-static device, RTFE, Delrin, NYLON&DEVLON seat inserts. Floating ball valves are designed, constructed and tested according to the most recent international standards, such as API, ASME, BS, DIN, etc.
Kelite split body floating ball valves are including below components,
2. Closure / Cap
4. Cavity Relieving Seat
6. Anti-Static Spring and Ball
14. Spiral Wound Gasket
15. Body Stud
16. Body Nut
17. Gland Screw
18. Stem Washer
19. Stem Bolt
20. Stem Bearing
21. Gland Bearing
22. Snap Ring / Circlip
Kelite split body floating ball valves has below design characteristic,
Floating ball valves present a particular problem with the build up of static electricity around the ball. All Kelite ball valves have anti-static devices which provides contact between stem and ball, and stem and body to eliminate static electricity.
In the event of a fire the valve is required to make a downstream seal. Even after the disintegration of the RTFE seats, KELITE ball valves have an excellent metal to metal seal. Special attention has been paid to the mechanical strength and sealing efficiency of the central flanged joint in the valve body.
The PTFE gasket packing acts as a primary seal for the unibody ball valves. The secondary seal has been made out of flexible graphite, a material with extremely good resistance to fire conditions.
The combination of stem packingand o-rings guarantee zero emissions even at a low pressure. The primary seal is made out of flexible graphite, a material with extremely good resistance to fire conditions. The anti-blow out stem is inserted from inside the valve body.
Technical parameters and characteristics:
|Product description||Side-mounted floating ball valve|
|Model||Floating ball valve|
|Nominal diameter||NPS 1/2～NPS 8|
|CLASS 150～CLASS 600|
|Design standard||API 608,ISO 17292,BS 5351|
|Structural length||ASME B16.10|
|Connecting end||ASME B16.5,ASME B16.25|
|Test standard||API 598, API 6D|
|Operation method||Handle, worm, motor-drive unit, pneumatic drive unit|
|Application fields||Water, petroleum and natural gas|
Other remarks 1
|A locking device is provided to prevent misoperation of valve.|
|Other remarks 2||Valve stem flyout prevention structure design, to prevent accident due to flyout of valve stem caused by abnormal pressurization in the chamber|
|Other remarks 3||Fireproof and antistatic design|
|Other remarks 4||Full bore of valve convenient for pigging, of small flow resistance and high flow capacity|
