API 6D Fully Welded Ball Valve Carbon Steel Stainless Steel Material

China API 6D Fully Welded Ball Valve Carbon Steel Stainless Steel Material supplier

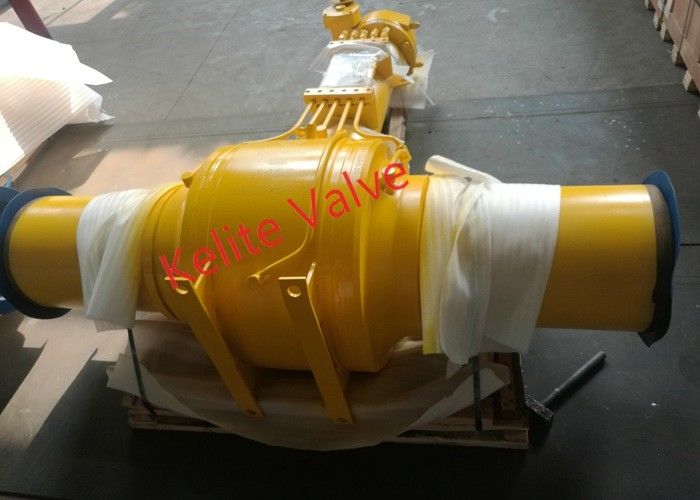

Large Image :  API 6D Fully Welded Ball Valve Carbon Steel Stainless Steel Material

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 1/2"-56",CL150-2500,API 2000-15000

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 30-80days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000-5000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 1/2"~56" Pressure Rating:: Class 150~2500,API 2000-15000
Material:: A105, LF2, F304, F316,F304L, F316L,F51,A106-B, 20# Etc Design & Manufacturing Standard:: API 6A, API 6D, API 6DSS, KS,BS 5351, ASME B16.34
Face To Face:: ASME B16.10, API 6D End Connection:: ASME B16.5, ASME B16.47, ASME B16.25
Test And Inspection:: ISO 5208, API 6D, API598 Operation Method:: Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator

API 6D fully welded ball valve of 2"-56" CL150-2500 CS and SS ball valve



Kelite Valves is famous for manufacturing fully welded ball valves in China market, we have made 56”CL600 fully welded ball valves for Iran market, a special technique was performed so that post welding heat treatment is not required so soft seals will not to be damaged during the welding process to make sure the seals good performance.



One-piece body, full bore/reduced bore, trunnion mounted, double block and bleed, single or double piston effect, anti-blow out stem, anti-static device, fire-safe certified to API-607/6FA/ISO 10497, spring loaded Seats, sealant injection, NACE MR-01-75, NYLON, DEVLON&PEEK seat inserts, designed and tested according to ASME B16.34, BS5351,KS and API-6D.



Service Type:
• Standard Temperature: -29°C to 220°C / -20°F to 428°F
• Low Temperature: -46°C to 150°C / -50°F to 302°F
• Cryogenic Temperature: -196°C to -593°C / -258°F to -620°F
• Subsea (Shallow & Deep Water)
• Underground
• High Temperature: Above 220°C / 428°F



Kelite fully welding ball valves design characteristic:

  • KELITE fully welded ball valves are used in pipelines, pumping and compression stations, offshore, onshore, subsea and cryogenic as well as abrasive and high temp applications.
  • The extensive size range and pressure class are available in a variety of materials including Carbon, Alloy & Stainless steel suitable for general to severe service conditions.
  • The KELITE fully welding ball valves are available with Double Block & Bleed independent of the seat type.
  • Single piston effect (SPE) is the standard feature for the seat rings of the KELITE fully welding ball valves.
    On a SPE seat ring: The pressure acting on the upstream side of the seat ring generates a force which push the seat towards the ball.The pressure acting on the downstream side of the seat ring generates a force which pull the seat ring away from the ball.
    Any overpressure which may be generated by the thermal expansion of the fluid trapped in the body cavity with the ball in fully closed position, will be automatically discharged in the line on the lower pressure side.
  • Double piston effect (DPE) is a standard feature for the seat rings of the KELITE fully welding ball valves & recommended for welded body valves. On a DPE seat ring, both the pressure acting on the upstream side of the seat ring and the pressure acting on the down stream side of the seat ring, generate a force which push the seat towards the ball. With this type of seat ring, the eventual overpressure which may be generated by the thermal expansion of the fluid trapped in the body cavity with the ball in fully closed position, can be discharged by the use of an external safety relief device. The Double Piston Effect grants a double sealing feature, if the upstream seat ring is damaged, the down stream seat grant the sealing feature of the valve.



Technical parameters and characteristics:



Product description Fully welding ball valve
Model Fully welding trunion forging ball valve
Nominal diameter NPS 2”~NPS 56”
Operating temperature -593℃~220℃(the range of service temperature may vary for different materials)
Operating pressure CL150-CL2500
Material A105N, A182 F304, F304L, F316, F316L, A352 LF2, LF2, etc.
Design standard API 6D,ASME B16.34
Structural length ASME B16.10
Connecting end/td> ASME B16.5,ASME B16.25
Test standard API 598, API 6D, ISO 5208
Operation method Handle, worm, motor-drive unit, pneumatic drive unit
Application fields Oil and natural gas pipelines, and urban gas pipeline
Other remarks 1 The valve seat is embedded with flexible seal ring for zero leakage of seal; the valve seat is provided with a preloaded spring that is adaptive to the variation of pressure and temperature, so leakage is not liable to happen.
Other remarks 2 Integral valve with welded valve body, free of external leakage, etc.
Other remarks 3 Fire resisting construction of all-welded ball valve. Each leakage position is designed with flexible graphite packing or stainless steel mixing graphite to satisfy the fire resisting requirements in case of a fire.
Other remarks 4 The most advanced support plate structure both at home and abroad is adopted for large diameters to increase the service life and reduce the operating torque of valve. Thus, the service life of valves is greatly extended.
Other remarks 5 The directly-buried all-welded ball valve can be buried directly, in which case, no high and large valve pit is required, only a small shallow pit needs to be built on ground, so the construction cost and the engineering time can be significantly saved.
Other remarks 6 Full bore of valve convenient for pigging, of small flow resistance and high flow capacity and good flow characteristics
Other remarks 7 The valve ball can completely enclose the valve seat when the all-welded ball valve is opened, so the impurities in the medium will not be flushed to the valve seat or the packing surface of valve body. Hence, the valve body has a same service life as the pipeline due to his special construction.
