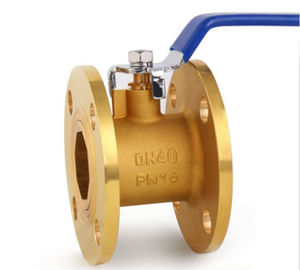

Casting Brass Floating Type Ball Valve Brass Bronze Aluminium Bronze Material

China Casting Brass Floating Type Ball Valve Brass Bronze Aluminium Bronze Material supplier
Casting Brass Floating Type Ball Valve Brass Bronze Aluminium Bronze Material supplier Casting Brass Floating Type Ball Valve Brass Bronze Aluminium Bronze Material supplier

Large Image :  Casting Brass Floating Type Ball Valve Brass Bronze Aluminium Bronze Material

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 1/2"-10" CL150

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 10-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000-5000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 1/2"~10" Pressure Rating:: Class 150
Material:: Brass, Bronze,aluminium Bronze Design Standard:: API 608, API 6D, BS 5351, ASME B16.34
Face To Face:: ASME B16.10, API 6D, BSEN 558 End Connection:: ASME B16.5, BSEN 1092

Casting brass floating type ball valve of 1/2"-10" CL150 GB , API 6D , 608 desgin

  • Blow-out proof stem
  • Triple sealing stem with 2 Viton o-rings and Teflon seal
  • 100% leak tested
  • Leakproof stem - Lifetime Warranty
  • 29 in-HG vacuum rating
  • Accessories available



Pressure stage Size Dimensions (mm) weight (kg)
DN NPS L d W H
RF RTJ Hand wheel Hand wheel Hand wheel
Class 150 15 1/2 108 119 14 140 85 3
20 3/4 117 130 19 140 90 4
25 1 127 140 25 150 99 5
32 1 1/4 140 153 32 180 105 7
40 1 1/2 165 178 38 200 126 8
50 2 178 191 51 250 140 12
65 2 1/2 190 203 64 300 165 18
80 3 203 216 76 350 178 24
100 4 229 242 102 500 230 38
125 5 356 369 127 800 280 60
150 6 394 407 152 800 310 82
200 8 457 470 203 1000 350 145
250 10 533 546 254 ----- ----- -----


Application
Floating ball valves are suitable for use on various kinds of pipelines of class 150 to turn on or off the pipeline medium,of which the operation types include manual,worm gear and pneumatic or electricactuators.

Reliable seat seal
The structure design of elastic sealing ring has been adopted for floating ball valves.This seat design features a bigger sealing pressure ratio between the ring surface and the ball when medium pressure gets lower,where the contacting area is samller.Thus,the reliable seal is ensured.When the medium pressure gets highter,the contacting area between seat ring and ball becomes bigger as the sealing ring transforms elastically to undertake the bigger force pushed by the medium withour any damage.

2 Piece Full Port Thread Connection 600WOG Brass Material Ball Valve 150WSP2 Piece Full Port Thread Connection 600WOG Brass Material Ball Valve 150WSP

Quality assurance system

1. Sclerometer
2. Universeal material testing machine
3. High speed analyzer
4. Chemical analysis
5. Electric analysis scales
6. NDE MT inspection
7. NDE UT inspection
8. NDE PT inspecion
9. PMI spectrum analysis
10. Hydraulic pressure test
11. Cryogenic ball valve test
12. Fire-safe test

13. FE test
